Installation Procedure

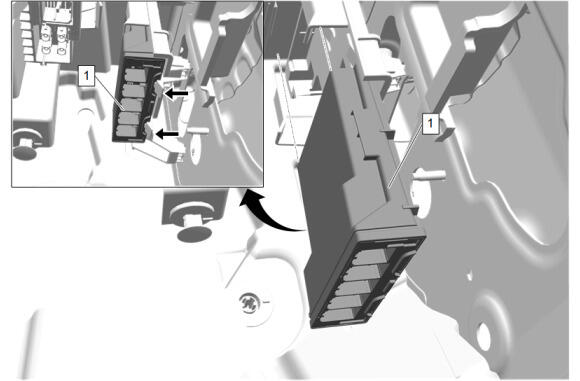

  1. GM5842891Courtesy of GENERAL MOTORS COMPANY

    Lighting Control Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors.
  4. GM5775694Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (2) - Install

  5. Instrument Panel Lower Insulator Retainer (1) - Install [4x]
  6. Perform the necessary programming and setup procedure: Control Module References
