Front Floor Console Components - Lower

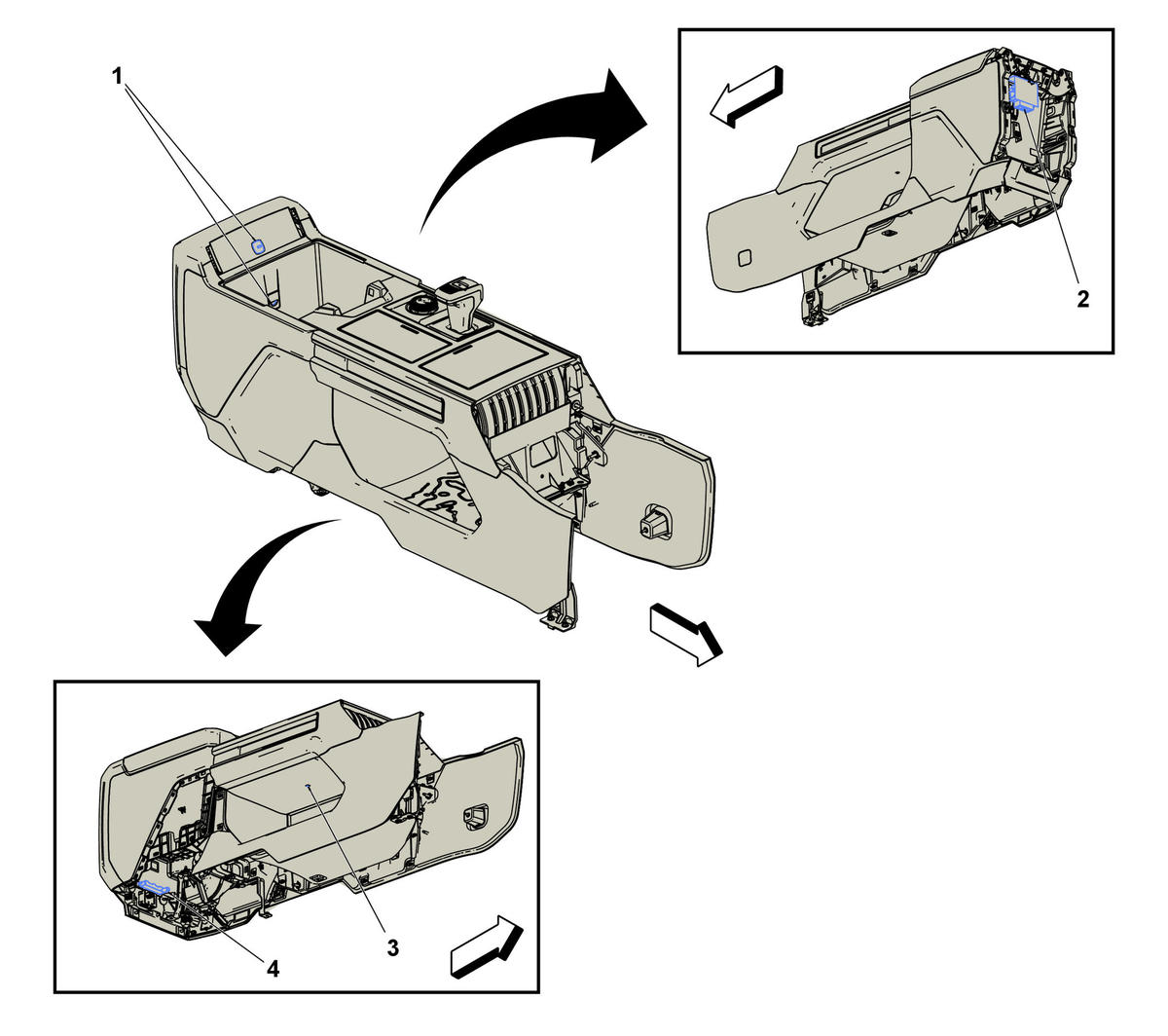

GM5877372Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Components - Lower

Components
1. E28 Front Floor Console Compartment Lamp E28 Front Floor Console Compartment Lamp
2. K183 Near Field Communication Module K183 Near Field Communication Module
3. E88 Front Floor Console Bin Lamp E88 Front Floor Console Bin Lamp
4. T10KA Low Frequency Console Number 2 Antenna T10KA Low Frequency Console Number 2 Antenna
