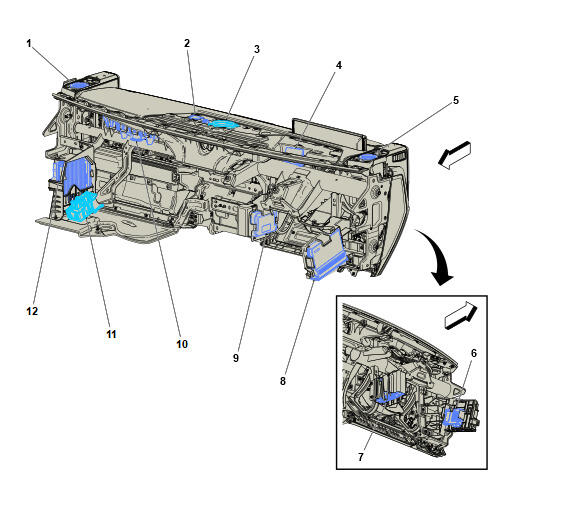

Instrument Panel Components - Front

Courtesy of GENERAL MOTORS COMPANY

Components
1. P19W Radio Front Speaker - Instrument Panel Right P19W Radio Front Speaker - Instrument Panel Right
2. T4TA Auxiliary Wireless Communication Interface Antenna T4TA Auxiliary Wireless Communication Interface Antenna
3. P19B Radio Front Center Speaker P19B Radio Front Center Speaker
4. P43 Forward Collision Alert Display P43 Forward Collision Alert Display
5. P19J Radio Front Speaker - Instrument Panel Left P19J Radio Front Speaker - Instrument Panel Left
6. K180 Driver Monitoring System Module K180 Driver Monitoring System Module X1 , or K180 Driver Monitoring System Module X2
7. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 ( ) , or K56 Serial Data Gateway Module X3
8. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8
9. K179 Automated Driving Mapping Module K179 Automated Driving Mapping Module X1 , or K179 Automated Driving Mapping Module X2 , or K179 Automated Driving Mapping Module X3
11. F101 Instrument Panel Airbag F101 Instrument Panel Airbag
12. X51R Instrument Panel Wiring Harness Junction Block - Right X51R Instrument Panel Wiring Harness Junction Block - Right X1 , or X51R Instrument Panel Wiring Harness Junction Block - Right X2 , or X51R Instrument Panel Wiring Harness Junction Block - Right X3 , or X51R Instrument Panel Wiring Harness Junction Block - Right X4
13. A11 Radio A11 Radio X1 ( ) , or A11 Radio X10 , or A11 Radio X11 ( ) , or A11 Radio X3 , or A11 Radio X5 , or A11 Radio X6 , or A11 Radio X7 , or A11 Radio X8 , or A11 Radio X9 ( )
