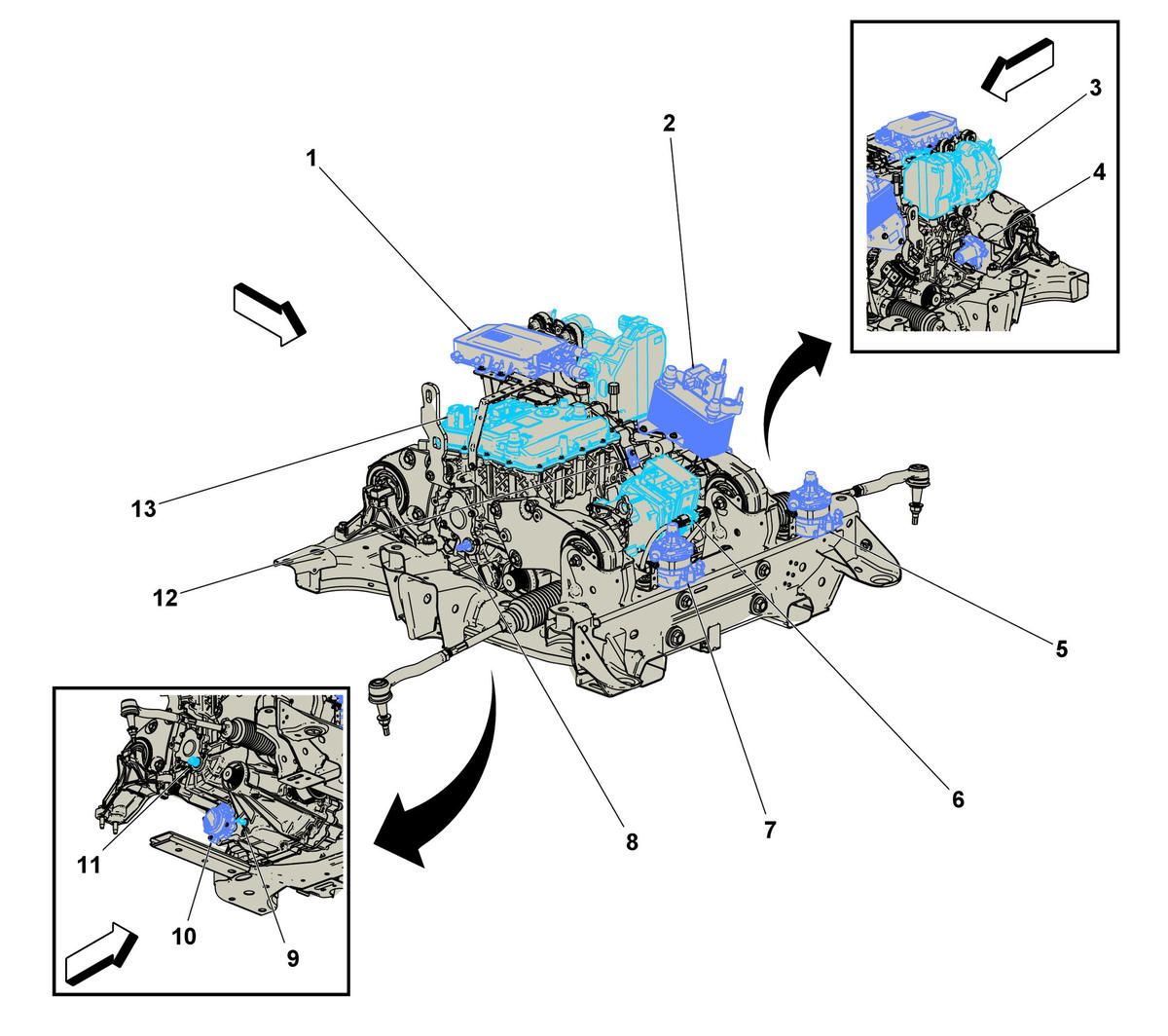

Front Powertrain Components

Courtesy of GENERAL MOTORS COMPANY

Components
1. E54V Hybrid/Electric Vehicle Coolant Heater E54V Hybrid/Electric Vehicle Coolant Heater X1 , or E54V Hybrid/Electric Vehicle Coolant Heater X2 ( )
2. Q112 Air Conditioning Cooler Electronic Expansion Valve Q112 Air Conditioning Cooler Electronic Expansion Valve
3. G1HV Air Conditioning With Motor Compressor G1HV Air Conditioning With Motor Compressor X1 , or G1HV Air Conditioning With Motor Compressor X2
4. M59H Manual Shift Shaft Motor M59H Manual Shift Shaft Motor
5. Q116 Hybrid/Electric Vehicle Electronics Coolant Pump Q116 Hybrid/Electric Vehicle Electronics Coolant Pump
6. K43 Power Steering Control Module K43 Power Steering Control Module X1 , or K43 Power Steering Control Module X2 , or K43 Power Steering Control Module X3 , or K43 Power Steering Control Module X4 , or K43 Power Steering Control Module X5 , or K43 Power Steering Control Module X6
6. G65 Hybrid/Electric Vehicle Battery Coolant Pump G65 Hybrid/Electric Vehicle Battery Coolant Pump
7. B228A Drive Motor 1 Position Sensor B228A Drive Motor 1 Position Sensor
8. B389F Drive Unit Fluid Temperature Sensor - Front B389F Drive Unit Fluid Temperature Sensor - Front
9. G5A Automatic Transmission Auxiliary Fluid Pump 1 G5A Automatic Transmission Auxiliary Fluid Pump 1
10. B228A Drive Motor 1 Position Sensor B228A Drive Motor 1 Position Sensor
11. T12EF Front Electric Drive Transmission Module T12EF Front Electric Drive Transmission Module X1 , or T12EF Front Electric Drive Transmission Module X2
12. K107A Drive Motor Control Module 1 K107A Drive Motor Control Module 1 X1 , or K107A Drive Motor Control Module 1 X2
