Removal Procedure

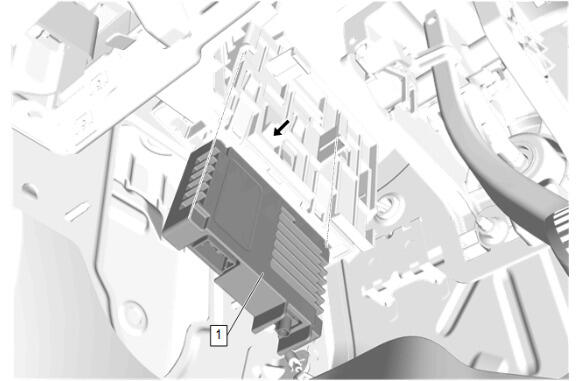

  1. GM5778394

    Disconnect the electrical connectors.

  2. Release the retaining tab.
  3. Driver Monitoring System Module (1) - Remove
