Pickup Box Endgate Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure

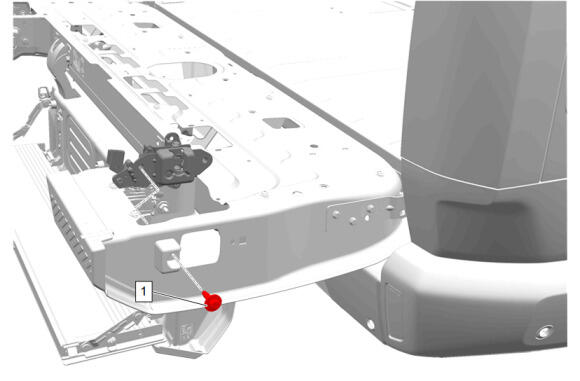

1	Pickup Box Endgate Latch Handle Bolt	-	-	25 N.m (10 lb in)	Pickup Box Endgate Latch Replacement
