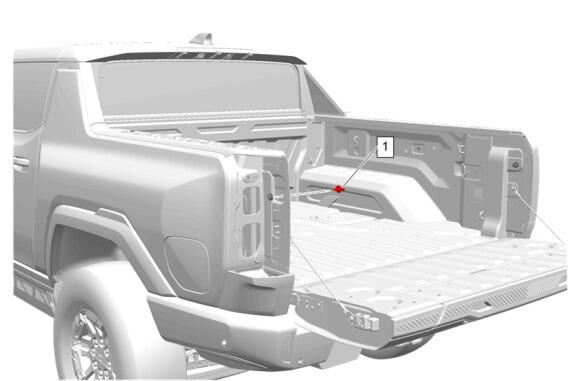

Pickup Box Endgate Striker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Pickup Box Endgate Striker	-	-	40 N.m (30 lb ft)	Pickup Box Endgate Striker Replacement
