Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. GM5810333Courtesy of GENERAL MOTORS COMPANY

    Rear Wheelhouse Liner (3)- Left Side - Remove - Rear Wheelhouse Liner Replacement

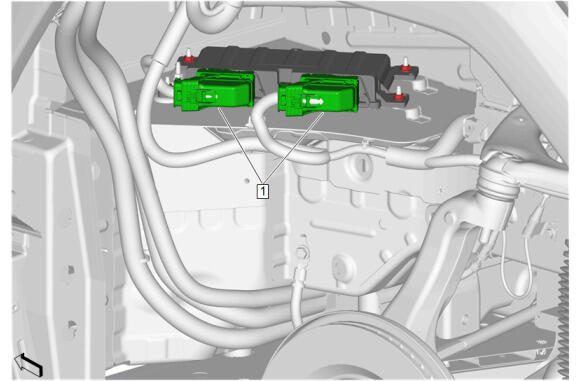

  3. GM5860366Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors. (1)

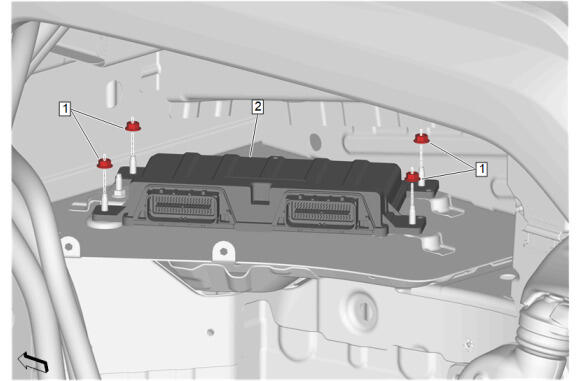

  4. GM5860369Courtesy of GENERAL MOTORS COMPANY

    Hybrid Powertrain Control Module 2 Nut (1) - Remove [4x]

  5. Battery Energy Control Module 1 (2) - Remove
