Removal Procedure

Drain the drive motor battery cooling system. Drive Motor Battery Cooling System Draining and Filling
Disable the high voltage system. High Voltage Disabling
Courtesy of GENERAL MOTORS COMPANY

Remove any wiring harness retainers as necessary.

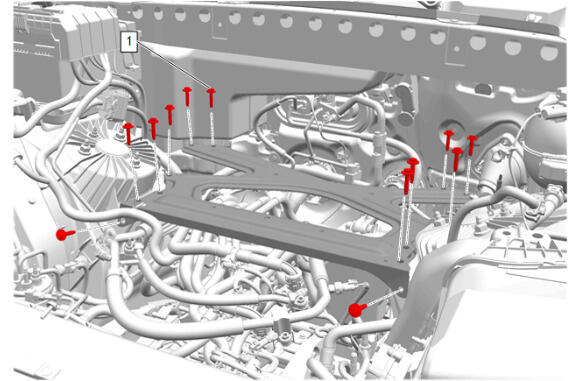

Front End Sheet Metal Cross Brace Bolt (1) - Remove [12x]
Courtesy of GENERAL MOTORS COMPANY

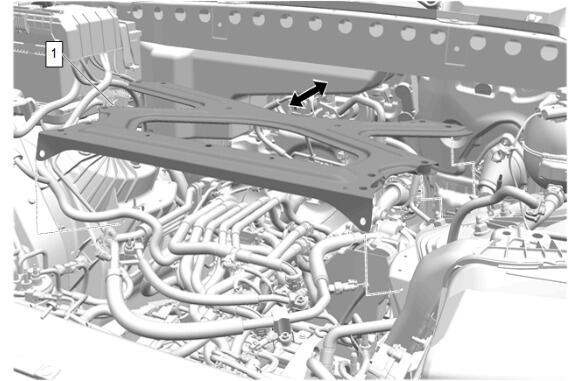

Front Suspension Strut Housing Brace (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

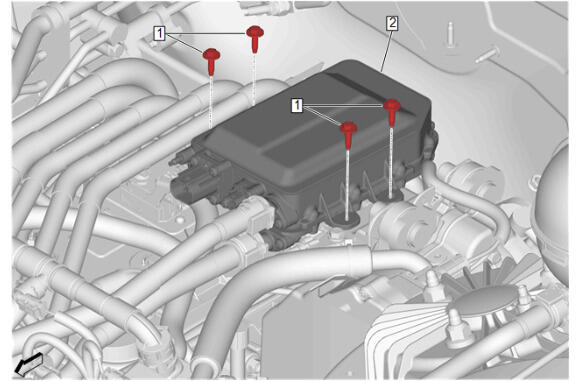

High Voltage Battery Heater Bracket Bolt (1) - Remove [4x]
High Voltage Battery Heater Module (2) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

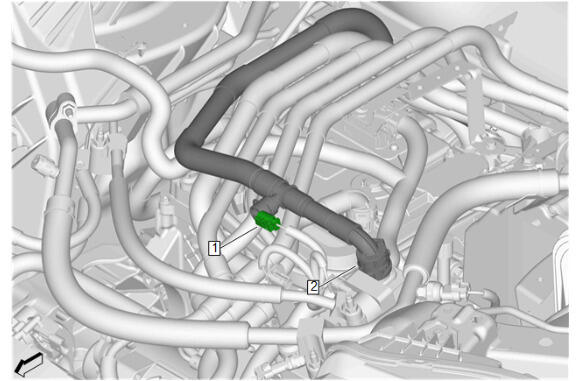

Disconnect the electrical connector. (1)
High Voltage Battery Coolant Inlet Hose (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

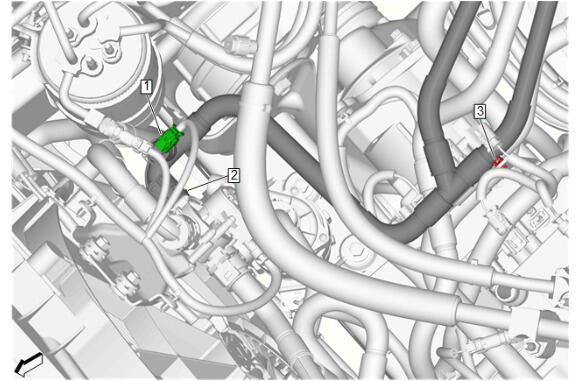

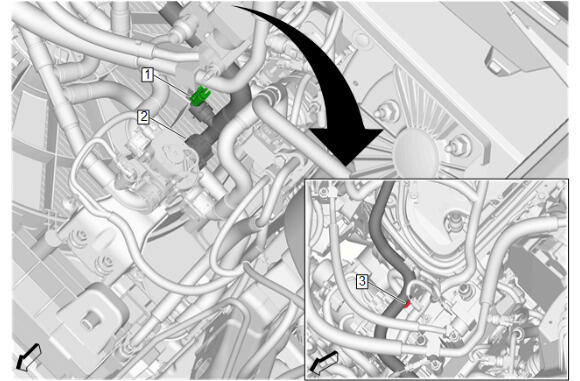

Disconnect the electrical connector. (1)
High Voltage Battery Coolant Pump Inlet Hose (2) - Disconnect
Remove the high voltage battery coolant pump inlet hose retainer (3).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

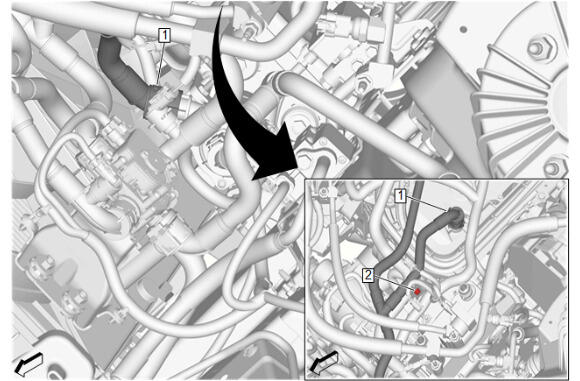

Front Electric Drive Transmission Module Hose (1) - Disconnect [2x]
Remove the front electric drive transmission module hose retainer (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Disconnect the electrical connector. (1)
High Voltage Battery Coolant Cooler Outlet Hose (2) - Disconnect
Remove the high voltage battery coolant cooler outlet hose retainer (3).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

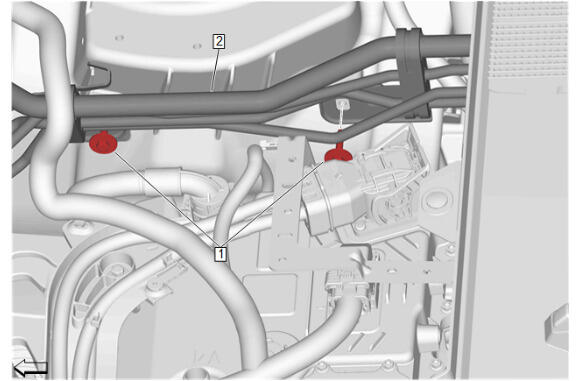

Air Conditioning Evaporator Bracket Bolt (1) - Remove [2x]
Reposition the air conditioning refrigerant heat exchanger (2) as necessary.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

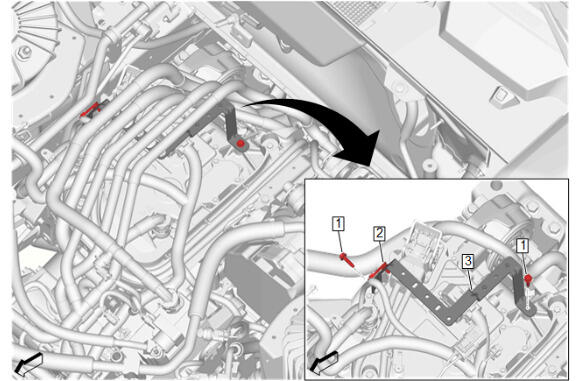

High Voltage Battery Heater Bracket Bolt (1) - Remove [2x]
Remove the engine wiring harness retainer (2).
Reposition the high voltage battery heater bracket (3) and the attached cooling hoses and secure with tie straps.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

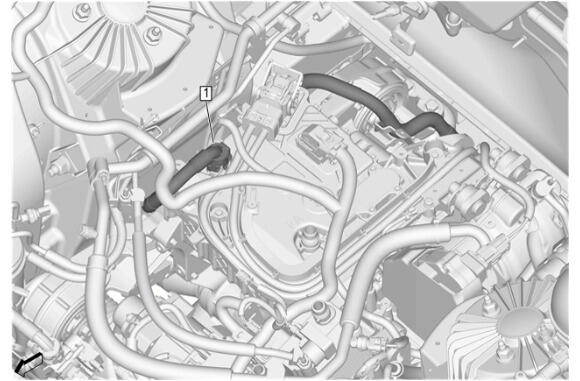

Front Electric Drive Transmission Module Cooler Coolant Hose (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

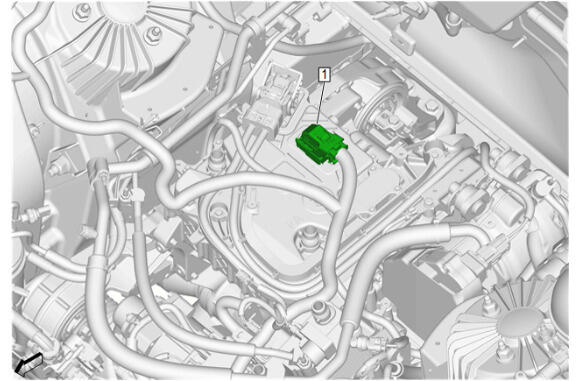

Disconnect the electrical connector. (1)
Remove the engine wiring harness retainers as necessary.
Reposition the engine wiring harness as necessary.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

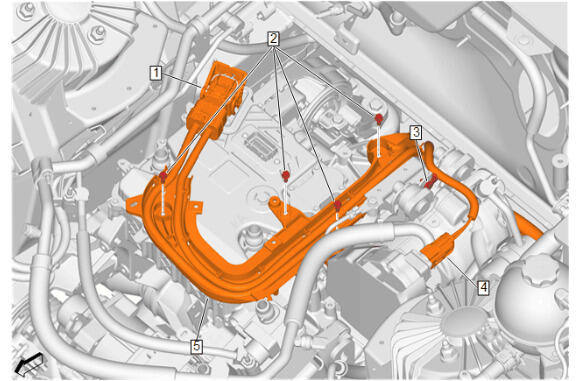

Disconnect the electrical connector. (1)
Battery Cable Clip Bracket Bolt (2) - Remove [4x]
Remove the battery positive and negative cable retainer (3).
Disconnect the electrical connector. (4)
Reposition the battery positive and negative cable (5) and secure with tie straps.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

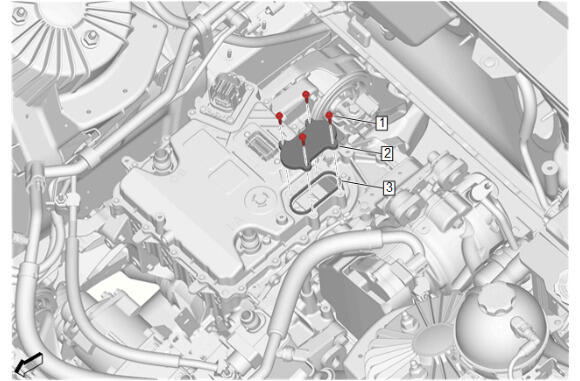

Drive Motor Power Inverter Module Cover Bolt (1) - Remove [4x]
Drive Motor Power Inverter Module Cover (2) - Remove
Drive Motor Power Inverter Module Cover Gasket (3) - Remove
Inspect the drive motor power inverter module cover gasket (3) and replace if necessary.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

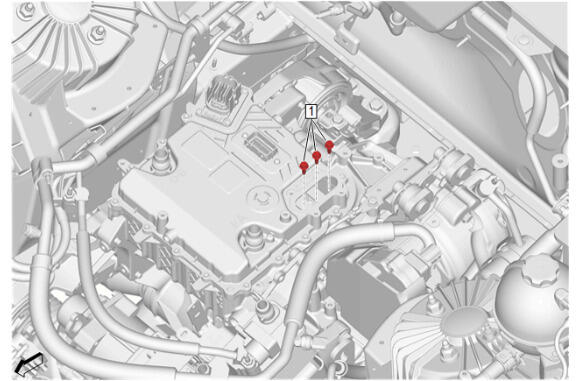

Drive Motor Power Inverter Module Connector Bolt (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

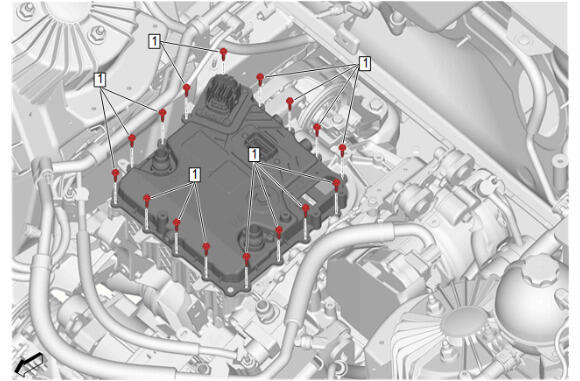

Drive Motor Power Inverter Module Bolt (1) - Remove [16x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

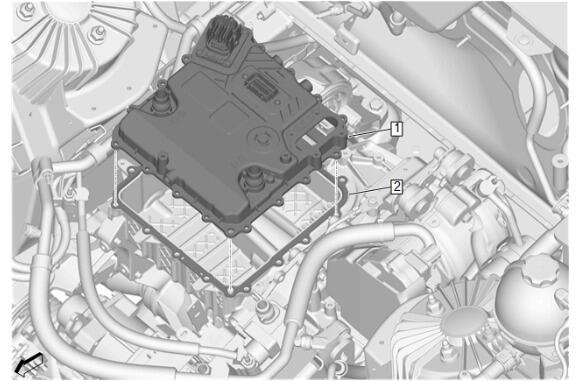

Drive Motor Power Inverter Module (1) - Remove
Drive Motor Power Inverter Module Cover Gasket (2) - Remove
Inspect the drive motor power inverter module cover gasket (2) and replace if necessary.
