Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

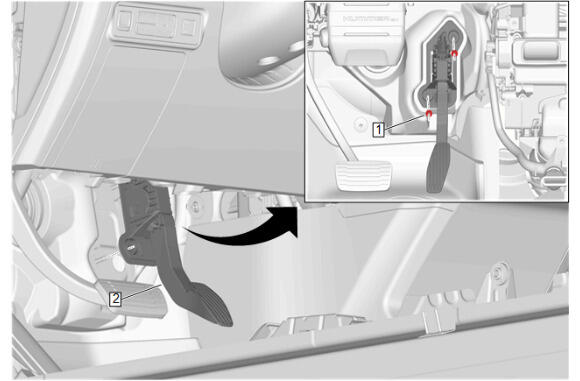

Accelerator Pedal Nuts

Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Specification	Procedure Link
Callout	Component Name [Component Quantity]	Single Use Fastener / Component	Thread Locking Adhesive Required	Metric (English)	Procedure Link
1	Accelerator Pedal Nut [2x]	-	-	9 N.m (80 lb in)	Accelerator Pedal Replacement
