Installation Procedure

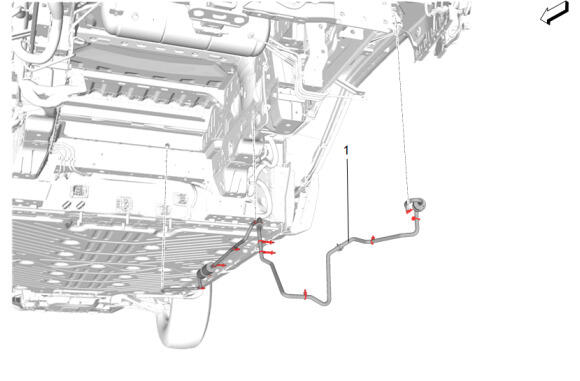

  1. GM5902513

    Automatic Level Control Air Compressor Inlet Tube (1) - Install

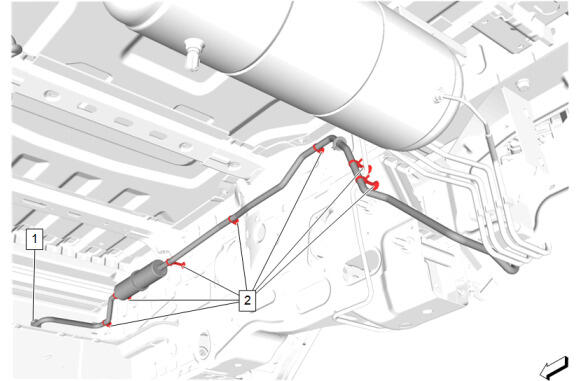

  2. GM5902505

    Install the automatic level control air compressor inlet tube (1) in the body grommet.

  3. Install the 7 automatic level control air compressor inlet tube retainers (2).

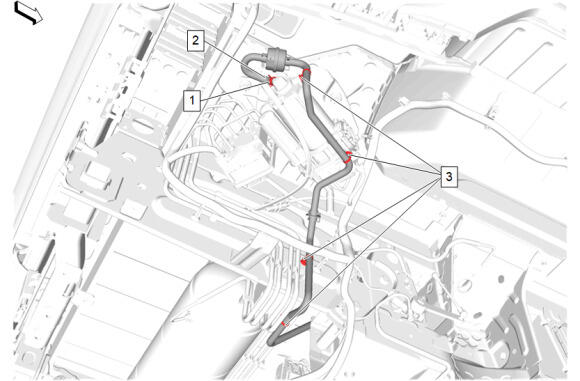

  4. GM5902401

    Install the 4 automatic level control air compressor inlet tube retainers (3).

  5. Automatic Level Control Air Compressor Inlet Tube (2) - Install
  6. Install the hose clamp (1) on the automatic level control air compressor inlet tube (2).
  7. GM5902903

    install the rear cradle, and electric drive transmission module assembly (1) to the vehicle. Rear Suspension Cradle Removal and Installation
