Installation Procedure

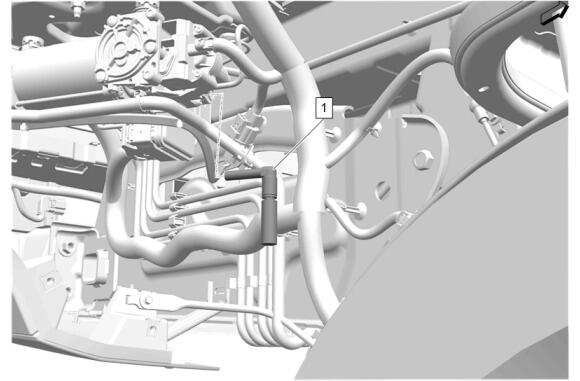

Install the automatic level control air compressor tube (1).

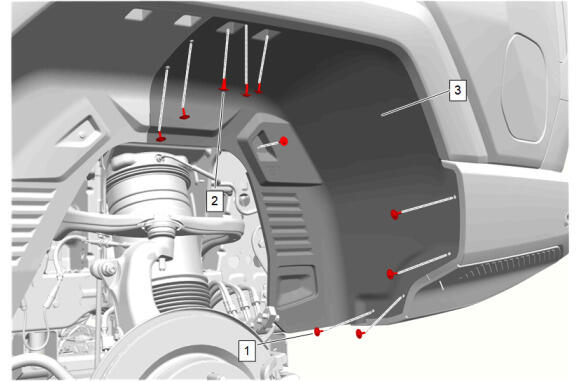

Rear Wheelhouse Panel Rear Liner (3) - Install
- Rear Wheelhouse Liner Bolt (1) - Install and tighten [9x] - Fastener Specifications
- Rear Wheelhouse Liner Retainer (2) - Install
- Install the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution
NOTE:
Left side shown, right side similar.
