Removal Procedure
Remove the left and right front floor mat (1).
- NOTE:
Use a flat bladed plastic trim tool.
Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Remove
- Front Floor Console Extension Bolt (2) - Remove
Move the front seat to access the retainers.
- Front Floor Console Extension Panel (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Front Floor Console Lower Applique (1) - Remove
Tire Repair Sealer and Tire Air Compressor Retainer (1) - Remove
- Tire Air Compressor (2) - Remove
Rear Floor Mat (1) - Remove
Move the front seat to access the retainers.
- Front Floor Console Bolt Access Hole Cover (1) - Remove
- Front Floor Console Retainer Bolt (2) - Remove [5x]
- NOTE:
Use a flat bladed plastic trim tool.
Move the front seat to access the retainers.
- Front Floor Console Extension Panel (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Front Floor Console Lower Applique (1) - Remove
Move the front seat to access the retainers.
- Front Floor Console Bolt Access Hole Cover (1) - Remove
- Front Floor Console Retainer Bolt (2) - Remove [5x]
Disconnect the electrical connectors from the front floor console (1).
- Slide the front floor console (1) back enough to clear the instrument panel.
Release the retainers with a suitable plastic trim tool.

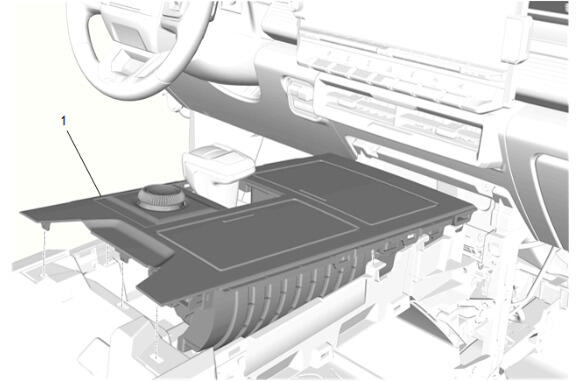

- Reposition the front floor console cup holder trim plate (1) to access the electrical connectors.
- Disconnect the electrical connectors.
Front Floor Console Cup Holder Trim Plate (1) - Remove
Ride Control Switch Bracket Bolt (1) - Remove [x4]
- Ride Control Switch Bracket and Ride Control Switch (2) - Remove
Release the retaining tabs.
- Separate the Ride Control Switch (1) and Ride Control Switch Bracket (2)
Use a flat bladed plastic trim tool.
Use a flat bladed plastic trim tool.
