Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
  3. Remove the left rear tire and wheel assembly. Tire and Wheel Removal and Installation

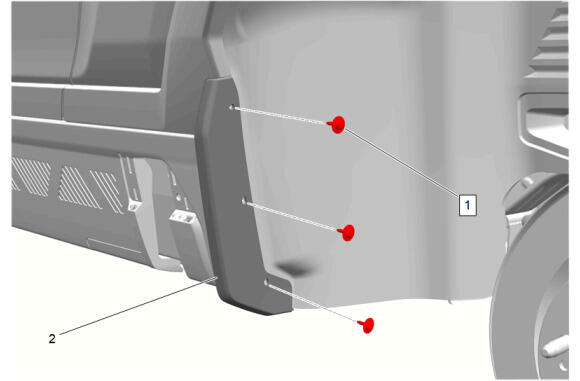

  4. GM5810320

    Rear Tire Front Air Deflector Bolt (1) - Remove [3x]

  5. Rear Tire Front Air Deflector (2) - Remove

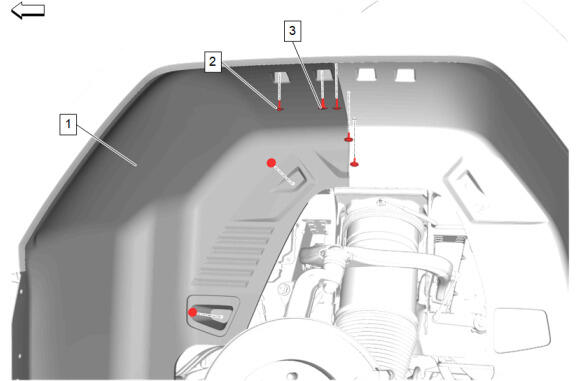

  6. GM5834999

    Rear Wheelhouse Liner Retainer (3) - Remove

  7. Rear Wheelhouse Liner Bolt (2) - Remove [6x]
  8. Rear Wheelhouse Liner (1) - Remove

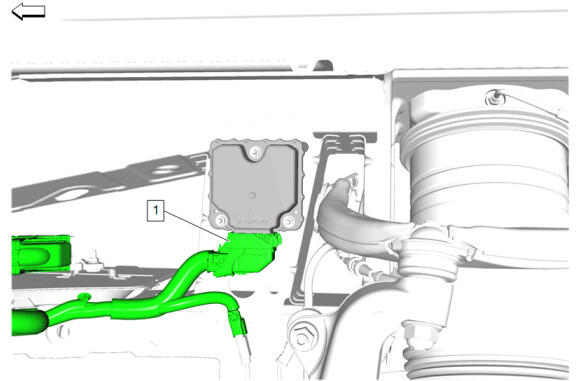

  9. GM5834896

    Disconnect the suspension control module wire harness connector (1).

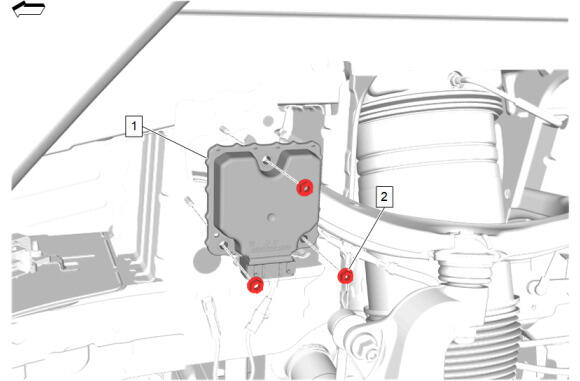

  10. GM5834898

    Electronic Suspension Control Module Bracket Nut (2) - Remove [3x]

  11. Suspension Control Module (1) - Remove
