Fastener Specifications

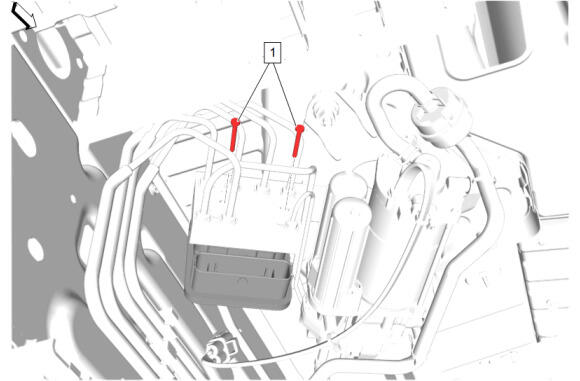

Automatic Level Control Air Compressor Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Level Control Air Compressor Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Air Suspension Control Module Replacement |

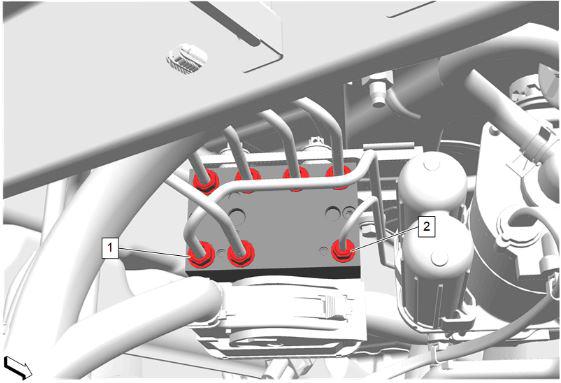

Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Controller
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Level Control Air Compressor Tube Fitting- 6 MM | - | - | 5.5 N.m (49 lb in) | Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Controller |
| 2 | Automatic Level Control Air Compressor Tube Fitting- 4 MM | - | - | 5.5 N.m (49 lb in) | Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Controller |

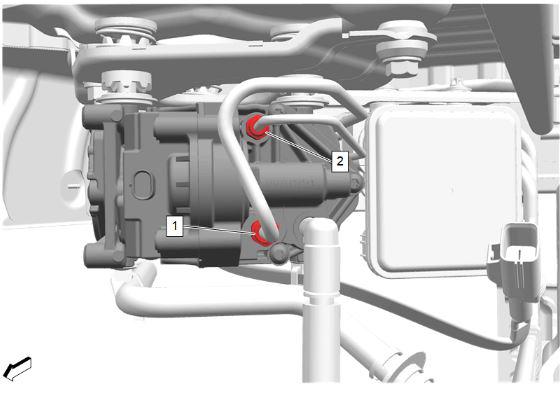

Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Level Control Air Compressor Tube Fitting- 6 MM | - | - | 3.5 N.m (31 lb in) | Automatic Level Control Air Compressor Tube Replacement - Pressure |
| 2 | Automatic Level Control Air Compressor Tube Fitting- 4 MM | - | - | 2.25 N.m (20 lb in) | Automatic Level Control Air Compressor Tube Replacement - Boost |

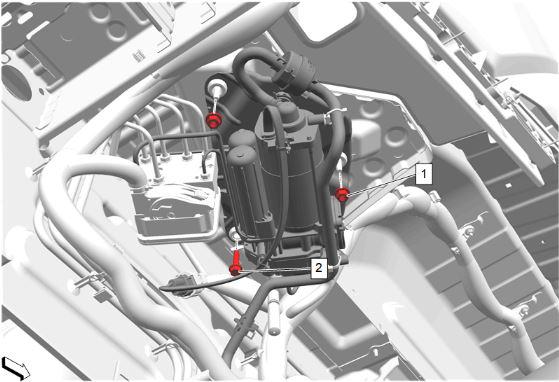

Automatic Level Control Air Compressor Bolt And Automatic Level Control Air Compressor Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Level Control Air Compressor Nut [2x] | - | - | 22 N.m (16 lb ft) | Automatic Level Control Module Replacement |
| 2 | Automatic Level Control Air Compressor Bolt | - | - | 22 N.m (16 lb ft) | Automatic Level Control Module Replacement |

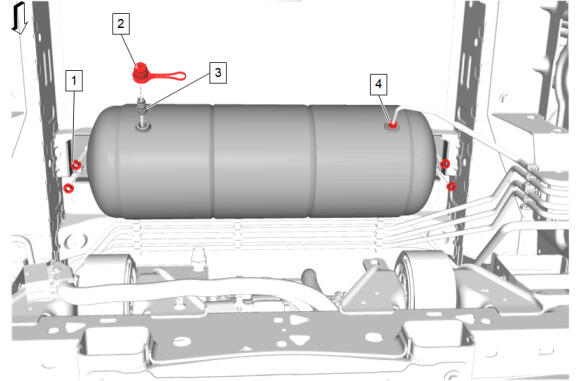

Automatic Level Control Air Supply Reservoir
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Level Control Air Supply Reservoir Nut [4x] | - | - | 22 N.m (16 lb ft) | Automatic Level Control Air Supply Reservoir Replacement |
| 2 | Automatic Level Control Air Supply Reservoir Coupling Cap | - | - | 2 N.m (18 lb in) | Automatic Level Control Air Supply Reservoir Coupling Replacement |
| 3 | Automatic Level Control Air Supply Reservoir Coupling | - | - | 10 N.m (7 lb ft) | Automatic Level Control Air Supply Reservoir Coupling Replacement |
| 4 | Automatic Level Control Air Compressor Tube Fitting | - | - | 5.5 N.m (49 lb in) | Automatic Level Control Air Supply Reservoir Replacement |

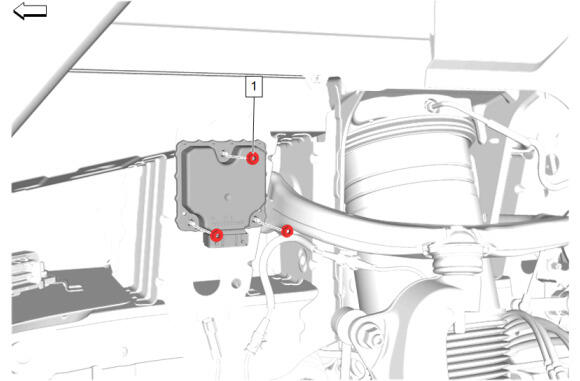

Electronic Suspension Control Module Bracket Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Electronic Suspension Control Module Bracket Nut [3x] | - | - | 9 N.m (80 lb in) | Suspension Control Module Replacement |

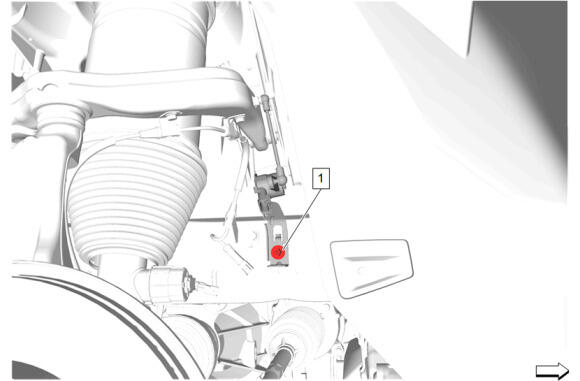

Front Suspension 4 Corner Leveling System Position Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Suspension 4 Corner Leveling System Position Sensor | - | - | 9 N.m (80 lb in) | Front Suspension 4 Corner Leveling System Position Sensor Replacement |

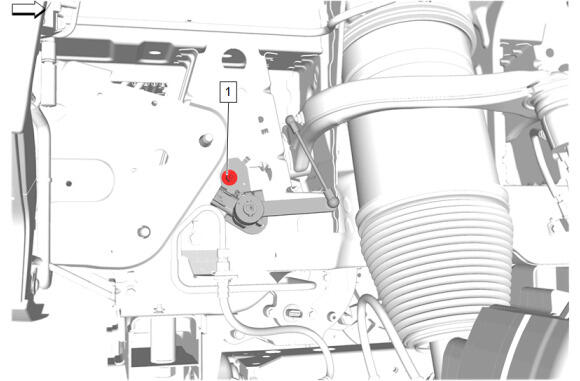

Rear Suspension 2 or 4 Corner Air Leveling Position Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Suspension 2 or 4 Corner Air Leveling Position Sensor | - | - | 9 N.m (80 lb in) | Rear Suspension 2 or 4 Corner Air Leveling Position Sensor Replacement |

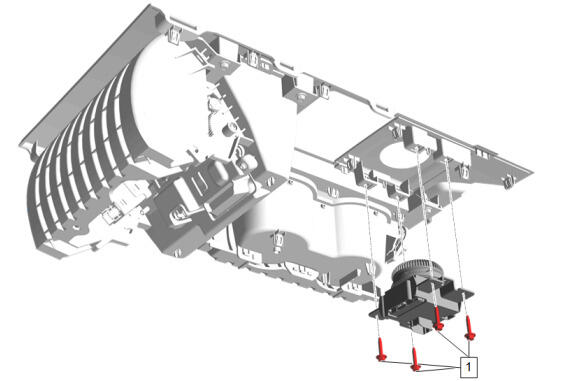

Ride Control Switch
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Ride Control Switch Bracket Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Ride Control Switch Replacement |
