Installation Procedure

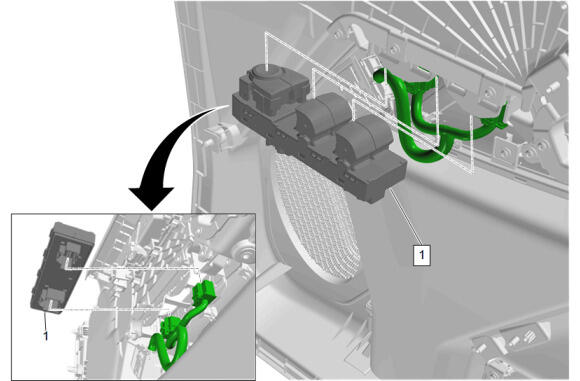

  1. GM6143362Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Control Switch (1) - Install

  2. Connect the electrical connectors.
  3. Reposition insulator, as required.
  4. Front Side Door Trim - Left Side - Install - Front Side Door Trim Removal and Installation
