Installation Procedure

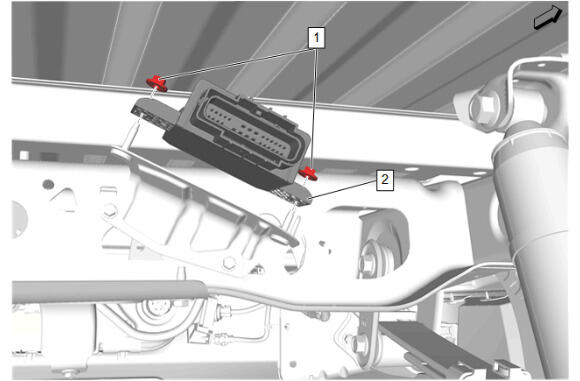

  1. GM6144682Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Fuel Pump Power Control Module Nut (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.
  4. Install the spare tire.
  5. Remove the support and lower the vehicle.
