Fastener Specifications

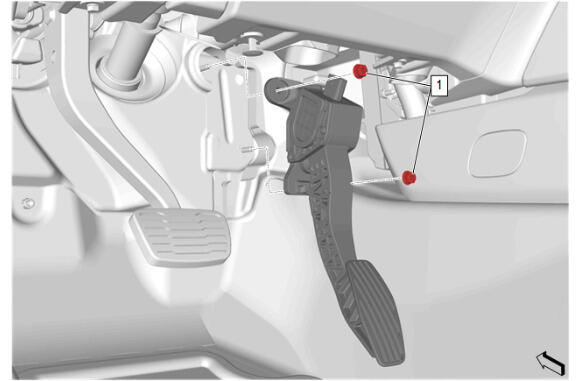

GM6160511Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Accelerator Pedal Nut [2x] - - 9 N.m (80 lb in) Accelerator Pedal Replacement

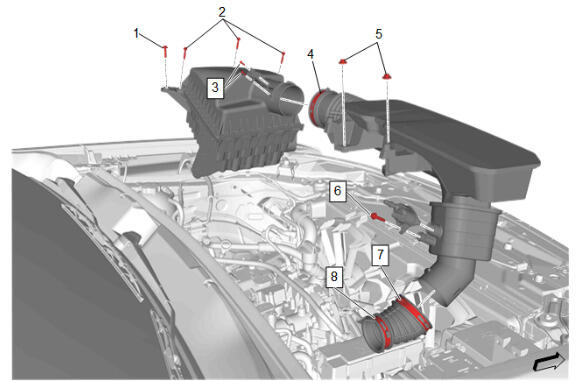

Fig 1: Identifying Air Cleaner Assembly Component Fasteners
GM6160513Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly and Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Air Cleaner Bolt - - 9 N.m (80 lb in) Air Cleaner Assembly Replacement
2 Air Cleaner Housing Cover Bolt [3x] - - 4 N.m (35 lb in) Air Cleaner Element Replacement
3 Mass Airflow Sensor Bolt [2x] - - 2.5 N.m (22 lb in) Mass Airflow Sensor Replacement
4 Air Cleaner Outlet Duct Clamp - - 3.5 N.m (31 lb in) Air Cleaner Outlet Duct Replacement
5 Air Cleaner Outlet Duct Nut [2x] - - 9 N.m (80 lb in) Air Cleaner Outlet Duct Replacement
6 Evaporative Emission Canister Purge Solenoid Valve Bolt - - 9 N.m (80 lb in) Evaporative Emission Canister Purge Solenoid Valve Replacement
7 Air Cleaner Outlet Duct Clamp - - 3.5 N.m (31 lb in) Air Cleaner Outlet Duct Replacement
8 Air Cleaner Outlet Duct Clamp - - 3.5 N.m (31 lb in) Turbocharger Outlet Duct Connector Replacement

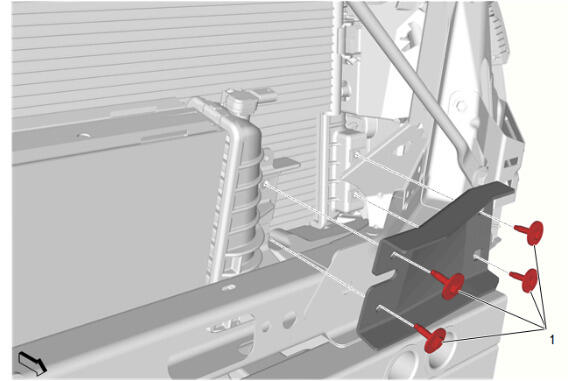

GM6160514Courtesy of GENERAL MOTORS COMPANY
Auxiliary Radiator Bracket - Left Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Charge Air Cooler Bolt [4x] - - 9 N.m (80 lb in) Auxiliary Radiator Bracket Replacement - Left Side

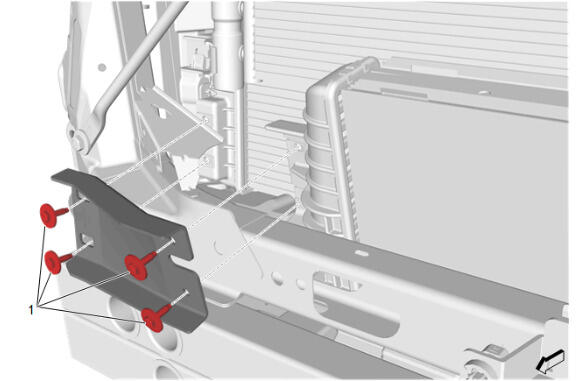

GM6160515Courtesy of GENERAL MOTORS COMPANY
Auxiliary Radiator Bracket - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Charge Air Cooler Bolt [4x] - - 9 N.m (80 lb in) Auxiliary Radiator Bracket Replacement - Right Side

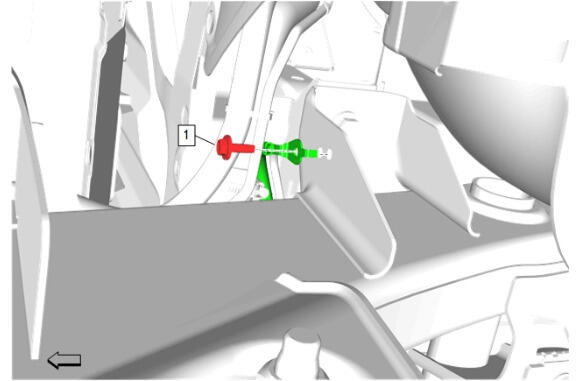

GM6186842Courtesy of GENERAL MOTORS COMPANY
Chassis Front Wiring Harness Ground Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Chassis Front Wiring Harness Ground Bolt - - 9 N.m (80 lb in) Fuel Tank Replacement
GM5668740Courtesy of GENERAL MOTORS COMPANY
Crankshaft Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Crankshaft Position Sensor Bolt - - 8.5 N.m (75 lb in) Crankshaft Position Sensor Replacement

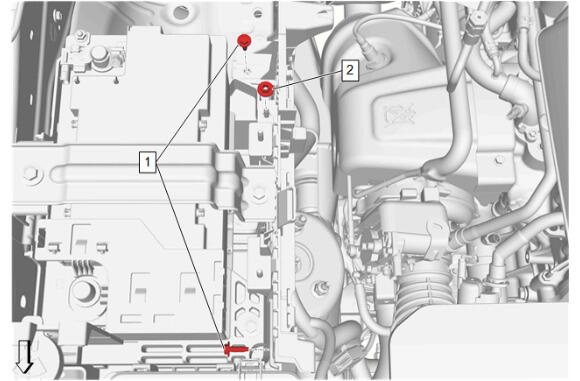

GM6160516Courtesy of GENERAL MOTORS COMPANY
Engine Control Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Control Module Bracket Bolt [2x] - - 9 N.m (80 lb in) Engine Control Module Bracket Replacement
2 Engine Control Module Bracket Nut - - 9 N.m (80 lb in) Engine Control Module Bracket Replacement

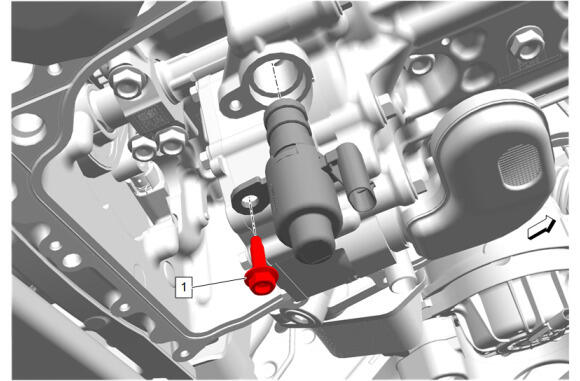

GM5882931Courtesy of GENERAL MOTORS COMPANY
Engine Oil Pressure Control Solenoid Valve

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Oil Pump Flow Control Solenoid Valve Bolt - - 8.5 N.m (75 lb in) Engine Oil Pressure Control Solenoid Valve Replacement

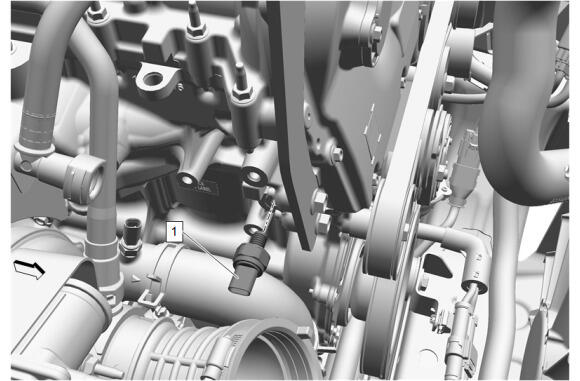

GM5645930Courtesy of GENERAL MOTORS COMPANY
Engine Oil Pressure Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Oil Pressure Sensor - - 35 N.m (26 lb ft) Engine Oil Pressure Sensor Replacement

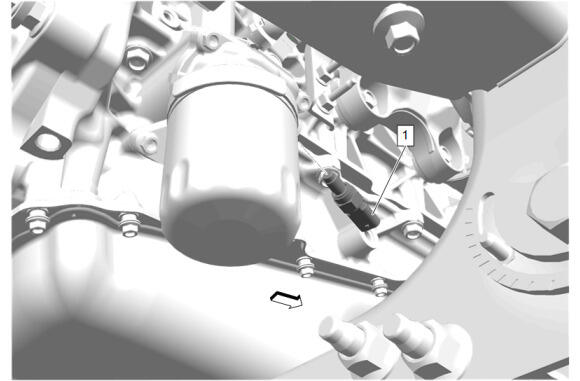

GM6144310Courtesy of GENERAL MOTORS COMPANY
Engine Oil Temperature Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Oil Temperature Sensor - - 17 N.m (13 lb ft) Engine Oil Temperature Sensor Replacement

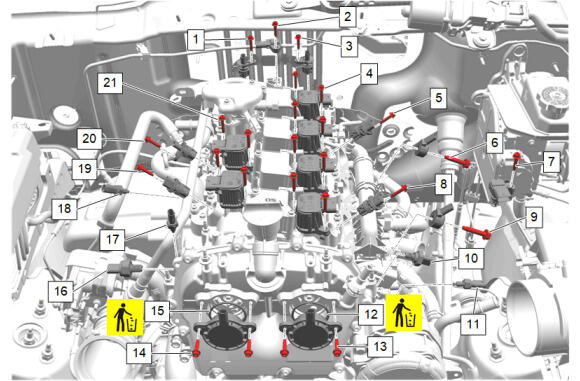

Fig 2: Identifying Engine Sensor Components And Fasteners
GM6200666Courtesy of GENERAL MOTORS COMPANY
Engine Sensors

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Camshaft Position Sensor Bolt - - 8.5 N.m (75 lb in) Camshaft Position Sensor Replacement - Exhaust
2 Crankcase Pressure Sensor Bolt - - 8.5 N.m (75 lb in) Crankcase Pressure Sensor Replacement
3 Camshaft Position Sensor Bolt - - 8.5 N.m (75 lb in) Camshaft Position Sensor Replacement - Intake
4 Camshaft Position Actuator Bolt [8x] - - 8.5 N.m (75 lb in) Exhaust Camshaft Profile Actuator Replacement - Intake (Without Bracket) , or Exhaust Camshaft Profile Actuator Replacement - Intake (With Bracket)
5 Camshaft Intake Lobe Sensor Bolt - - 8.5 N.m (75 lb in) Intake Camshaft Profile Sleeve Position Sensor Replacement
6 Knock Sensor Bolt - - 36 N.m (27 lb ft) Knock Sensor 2 Replacement
7 Intake Air Pressure and Temperature Sensor Bolt - - 8.5 N.m (75 lb in) Intake Air Pressure and Temperature Sensor Replacement
8 Camshaft Intake Lobe Sensor Bolt - - 8.5 N.m (75 lb in) Intake Camshaft Profile Sleeve Position Sensor Replacement
9 Knock Sensor Bolt - - 36 N.m (27 lb ft) Knock Sensor 1 Replacement
10 Fuel Pressure and Temperature Sensor - - 32.5 N.m (24 lb ft) Fuel Pressure and Temperature Sensor Replacement
11 Engine Coolant Temperature Sensor - - 9 N.m (80 lb in) - Engine Coolant Temperature Sensor Replacement - Engine Block
12 Camshaft Position Actuator Magnet Gasket Yes - - Camshaft Position Actuator Magnet Replacement - Intake
13 Camshaft Position Actuator Solenoid Valve Bolt [2x] - - 8.5 N.m (75 lb in) Camshaft Position Actuator Magnet Replacement - Intake
14 Camshaft Position Actuator Solenoid Valve Bolt [2x] - - 8.5 N.m (75 lb in) Camshaft Position Actuator Magnet Replacement - Exhaust
15 Camshaft Position Actuator Magnet Gasket Yes - - Camshaft Position Actuator Magnet Replacement - Exhaust
16 Engine Oil Pressure Sensor - - 35 N.m (26 lb ft) Engine Oil Pressure Sensor Replacement
17 Engine Coolant Temperature Sensor - - 9 N.m (80 lb in) - Engine Coolant Temperature Sensor Replacement - Exhaust Manifold Outlet Pipe
18 Engine Coolant Temperature Sensor - - 9 N.m (80 lb in) Engine Coolant Temperature Sensor Replacement - Water Inlet
19 Camshaft Intake Lobe Sensor Bolt - - 8.5 N.m (75 lb in) Exhaust Camshaft Profile Sleeve Position Sensor Replacement
20 Camshaft Intake Lobe Sensor Bolt - - 8.5 N.m (75 lb in) Exhaust Camshaft Profile Sleeve Position Sensor Replacement
21 Camshaft Position Actuator Bolt - - 8.5 N.m (75 lb in) Exhaust Camshaft Profile Actuator Replacement - Exhaust (With Bracket) , or Exhaust Camshaft Profile Actuator Replacement - Exhaust (Without Bracket)

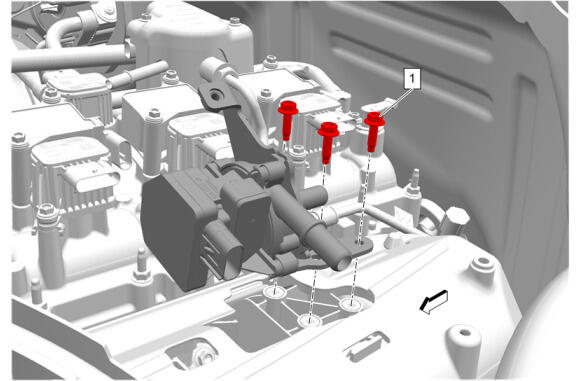

GM5726963Courtesy of GENERAL MOTORS COMPANY
Evaporative Emission Canister Purge Pump

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Evaporative Emission Canister Purge Pump Bolt [3x] - - 8.5 N.m (75 lb in) Evaporative Emission Canister Purge Pump Replacement

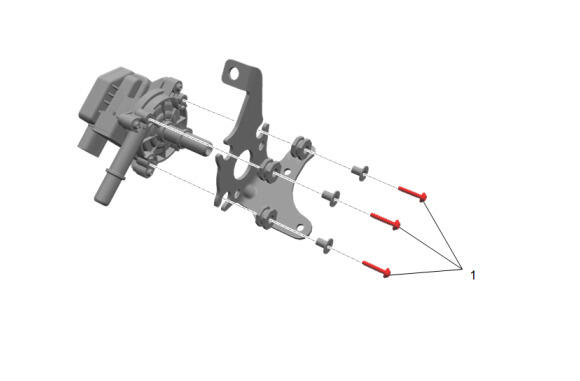

GM6431929Courtesy of GENERAL MOTORS COMPANY
Evaporative Emission Canister Purge Pump Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Evaporative Emission Canister Purge Pump Bolt [3x] - - 1.8 N.m (16 lb in) Evaporative Emission Canister Purge Pump Bracket Replacement

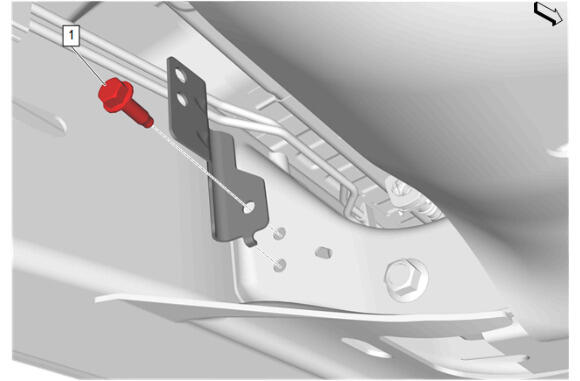

GM6173831Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Evaporative Emission Separator Bracket - Frame

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Feed Pipe Bracket Bolt - - 22 N.m (16 lb ft) Fuel Feed Evaporative Emission Separator Bracket Replacement - Frame

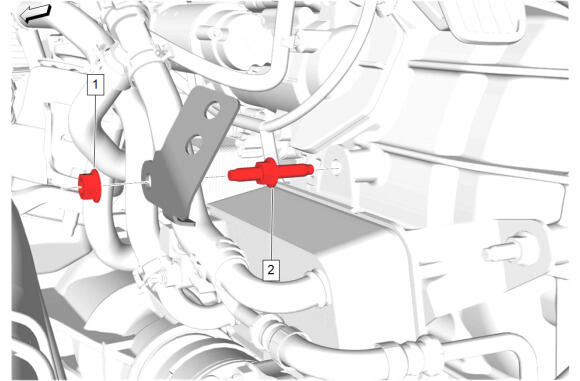

GM6265290Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Evaporative Emission Separator Bracket - Transmission Front

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Feed and Return Pipe Clip Bracket Nut - - 22 N.m (16 lb ft) Fuel Feed Evaporative Emission Separator Bracket Replacement - Transmission Front
2 Transmission Fluid Auxiliary Cooler Stud - - 22 N.m (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement

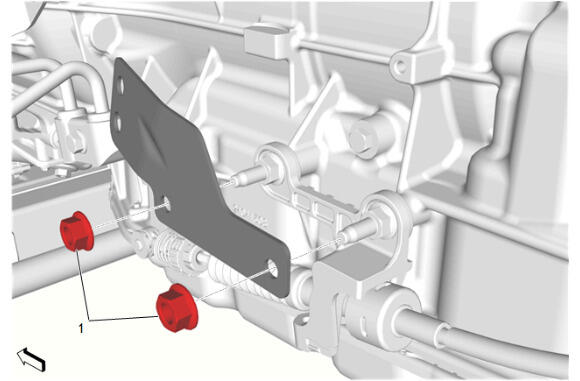

GM6173838Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Evaporative Emission Separator Bracket - Transmission Rear

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Feed and Return Pipe Clip Bracket Nut [2x] - - 22 N.m (16 lb ft) Fuel Feed Evaporative Emission Separator Bracket Replacement - Transmission Rear

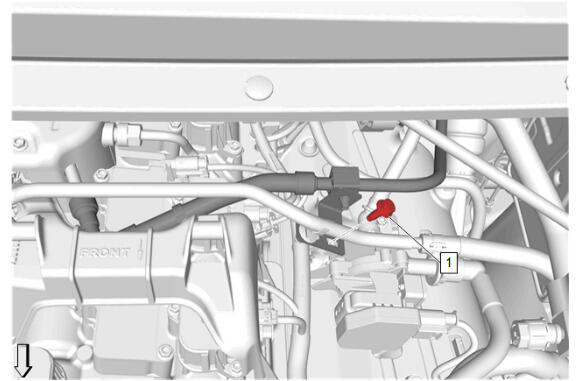

GM6187111Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Pipe

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Feed Pipe Bolt - - 9 N.m (80 lb in) Fuel Feed Front Pipe Replacement

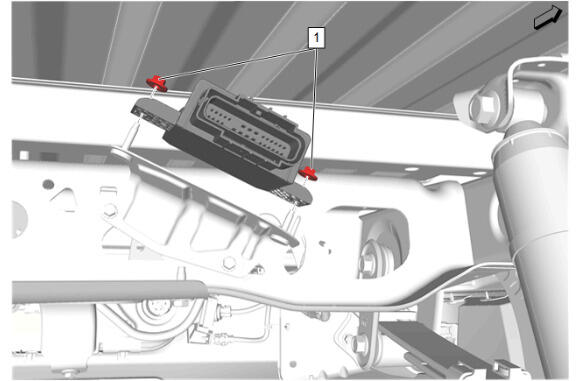

GM6161007Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Power Control Module

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Pump Power Control Module Nut [2x] - - 9 N.m (80 lb in) Fuel Pump Power Control Module Replacement

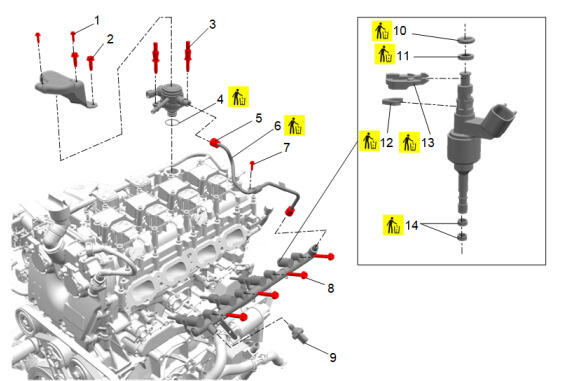

Fig 3: Identifying Fuel Rail And Fuel Injector Components And Fasteners
GM5672067Courtesy of GENERAL MOTORS COMPANY
Fuel Rail and Fuel Injector Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Fuel Pump Shield Bolt [2x] - - 8.5 N.m (75 lb in) Fuel Pump Replacement
2 Fuel Pump Shield Bolt [2x] - - 36 N.m (27 lb ft) Fuel Pump Replacement
3 Fuel Pump Stud [2x] - - 36 N.m (27 lb ft) Fuel Pump Replacement
4 Fuel Pump Housing Seal Yes - - Fuel Pump Replacement
5 Fuel Feed Intermediate Pipe Nut [2x] - - 30 N.m (22 lb ft) Fuel Feed Intermediate Pipe Replacement
6 Fuel Feed Intermediate Pipe Yes - - Fuel Feed Intermediate Pipe Replacement
7 Fuel Injection Fuel Feed Pipe Bracket Bolt - - 8.5 N.m (75 lb in) Fuel Feed Intermediate Pipe Replacement
8 Fuel Injection Fuel Rail Bolt [4x] - - 36 N.m (27 lb ft) Fuel Injection Fuel Rail Assembly Replacement
9 Fuel Pressure and Temperature Sensor - - 32.5 N.m (24 lb ft) Fuel Pressure and Temperature Sensor Replacement
10 Fuel Injector Seal [4x] Yes - - Fuel Injector Replacement
11 Fuel Injector Seal Spacer [4x] Yes - - Fuel Injector Replacement
12 Fuel Injector Bushing [4x] Yes - - Fuel Injector Replacement
13 Fuel Injector Retainer [4x] Yes - - Fuel Injector Replacement
14 Fuel Injector Nozzle Housing Seal [8x] Yes - - Fuel Injector Replacement

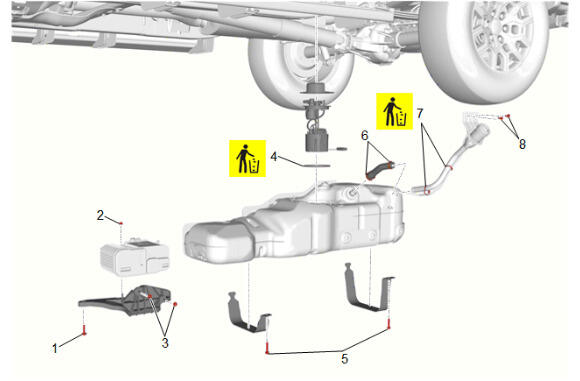

Fig 4: Identifying Fuel Tank Components And Fasteners
GM6174063Courtesy of GENERAL MOTORS COMPANY
Fuel Tank and Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Evaporative Emission Canister Bracket Bolt - - 22 N.m (16 lb ft) Evaporative Emission Canister Replacement
2 Evaporative Emission Canister Bracket Nut - - 22 N.m (16 lb ft) Evaporative Emission Canister Replacement
3 Evaporative Emission Canister Bracket Nut [2x] - - 22 N.m (16 lb ft) Evaporative Emission Canister Replacement
4 Fuel Sender Gasket Yes - - Fuel Tank Fuel Pump Module Replacement
5 Fuel Tank Strap Bolt [2x] - - 45 N.m (33 lb ft) Fuel Tank Replacement
6 Fuel Tank Filler Hose Clamp [2x] - - 3.5 N.m (31 lb in) Fuel Tank Filler Hose Replacement
7 Fuel Tank Filler Vent Hose Strap [2x] Yes - - Evaporative Emission Canister Filter Pipe Replacement
Fuel Tank Filler Pipe Replacement
8 Fuel Tank Filler Pipe Ground Bolt [2x] - - 9 N.m (80 lb in) Fuel Tank Filler Pipe Replacement

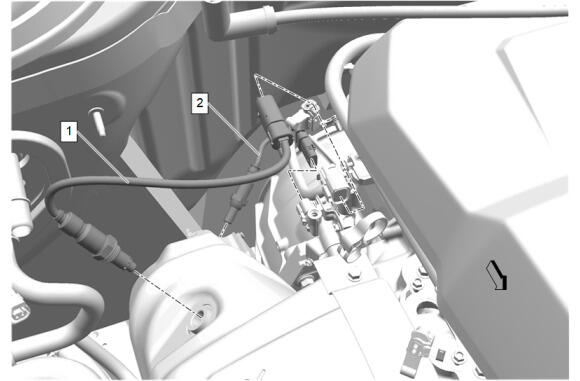

GM5672416Courtesy of GENERAL MOTORS COMPANY
Heated Oxygen Sensors

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Sensor 1
2 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Sensor 2

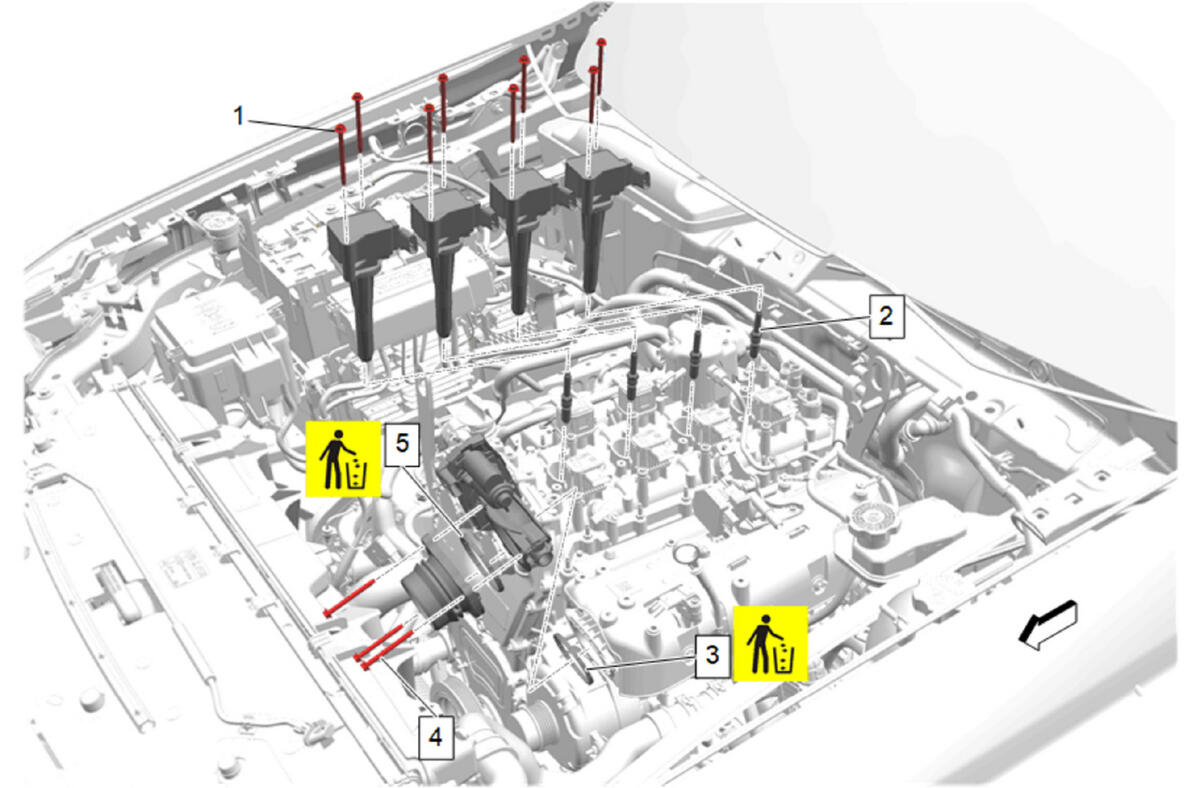

GM6201382Courtesy of GENERAL MOTORS COMPANY
Throttle Body and Ignition Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Ignition Coil Bolt [8x] - - 8.5 N.m (75 lb in) Ignition Coil Replacement - Cylinder 1, 2, 3
Ignition Coil Replacement - Cylinder 4
2 Gas Engine Ignition Spark Plug [4x] - - 16 N.m (142 lb in) Gas Engine Ignition Spark Plug Replacement - Cylinder 1, 2, 3
Gas Engine Ignition Spark Plug Replacement - Cylinder 4
3 Throttle Body Seal Yes - - Throttle Body Assembly Replacement
4 Throttle Body Bolt [3x] - - 10 N.m (89 lb in) Throttle Body Assembly Replacement
5 Throttle Body Seal Yes - - Throttle Body Assembly Replacement

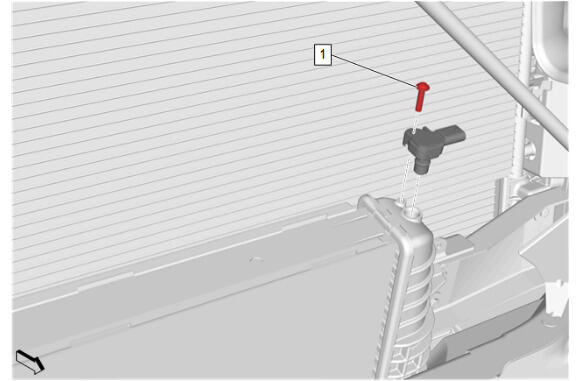

GM6161009Courtesy of GENERAL MOTORS COMPANY
Throttle Inlet Absolute Pressure Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Charge Air Cooler Bolt - - 3 N.m (27 lb in) Throttle Inlet Absolute Pressure Sensor Replacement

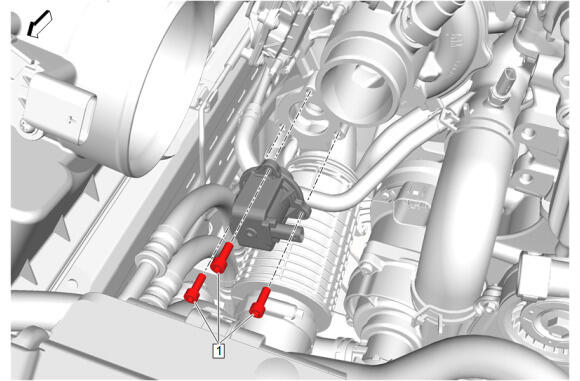

GM5821159Courtesy of GENERAL MOTORS COMPANY
Turbocharger Bypass Valve Solenoid Replacement

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Compressor Air Intake Turbocharger Bypass Valve Solenoid Bolt [3x] - - 7 N.m (62 lb in) Turbocharger Bypass Valve Solenoid Replacement

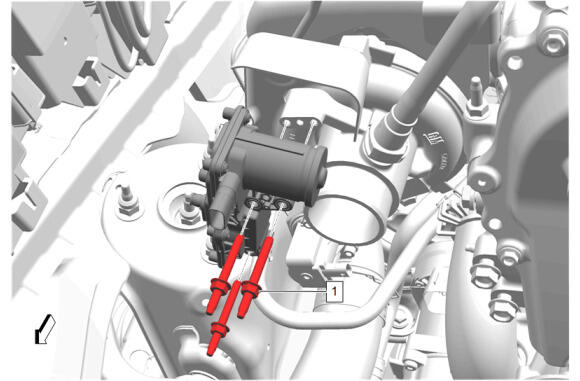

GM6201392Courtesy of GENERAL MOTORS COMPANY
Turbocharger Wastegate Actuator

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Turbocharger Wastegate Actuator Bolt [3x] - - 9 N.m (80 lb in) Turbocharger Wastegate Actuator Replacement

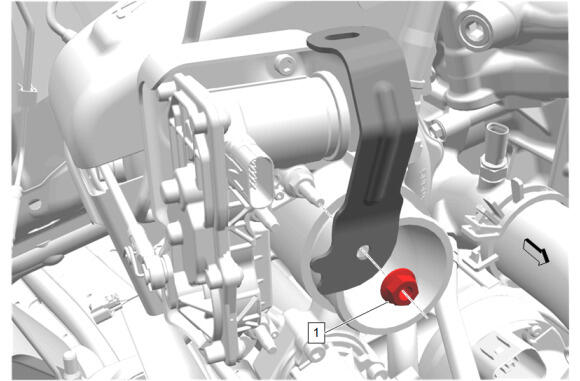

GM6268437Courtesy of GENERAL MOTORS COMPANY
Turbocharger Wastegate Actuator Engine Wiring Harness Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Wiring Harness Bracket Nut - - 9 N.m (80 lb in) Turbocharger Wastegate Actuator Replacement
