Fastener Specifications

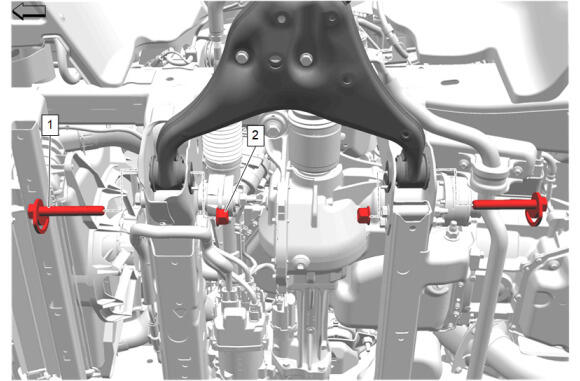

Front Lower Control Arm
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Lower Control Arm Adjust Bolt [2x] | - | - | - | Lower Control Arm Replacement. Refer to Front Lower Control Arm Replacement (RWL without 4TX) , or Front Lower Control Arm Replacement (F46 & 4TX) , or Front Lower Control Arm Replacement (F46 without 4TX) |
| 2 | Front Lower Control Arm Nut [2x] | - | - | First Pass: 175 N.m (129 lb ft) Final Pass: 90 - 105 Degrees |
Front Caster and Camber Adjustment |

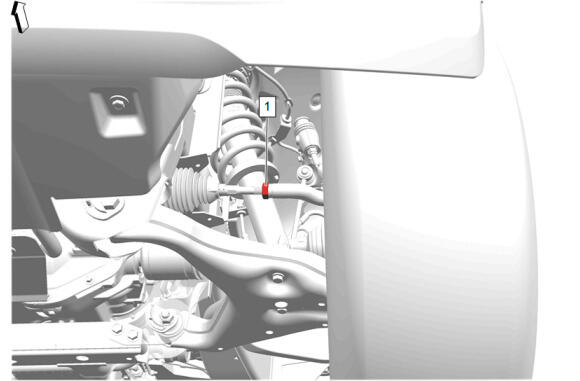

Steering Linkage Inner Tie Rod Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Linkage Tie Rod Adjuster Nut | - | - | 75 N.m (55 lb ft) | Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment |
