Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Remote Function Actuator Module (1) - Install
Secure the retaining tab.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Body Side Rear Window Garnish Molding (1) - Install
Install the rear floor panel covering.
Courtesy of GENERAL MOTORS COMPANY

Connect the wiring harness retainer.
Headlining Rear Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

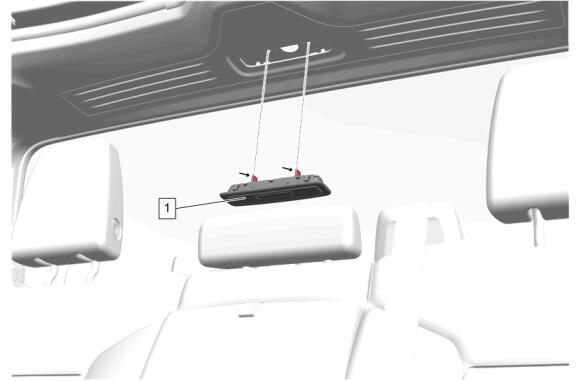

Rear Seat Position Center Reading and Courtesy Lamp (1) - Install
Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.
