Removal Procedure

  1. GM5034921Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Cushion (2) - Remove - Rear Seat Back Cushion Removal and Installation

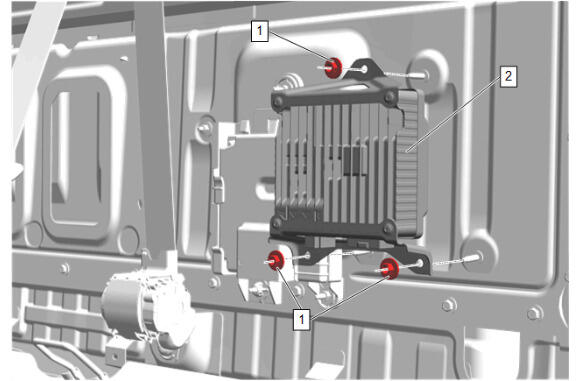

  2. GM5791755Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  3. Accessory AC and DC Power Control Module Nut (1) - Remove [ 3x]
  4. Accessory AC and DC Power Control Module (2) - Remove
