Removal Procedure

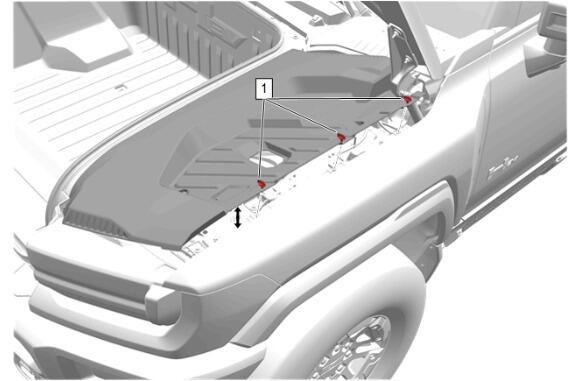

  1. GM5787985Courtesy of GENERAL MOTORS COMPANY

    Turn the 3 front compartment side sight shield retainers (1) a quarter turn counter clockwise to release.

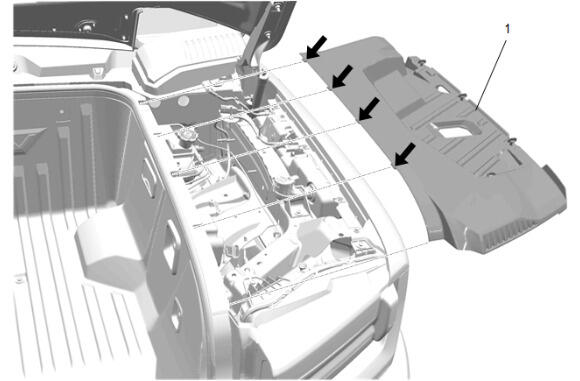

  2. GM5787987Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield- Left Side (1) - Remove

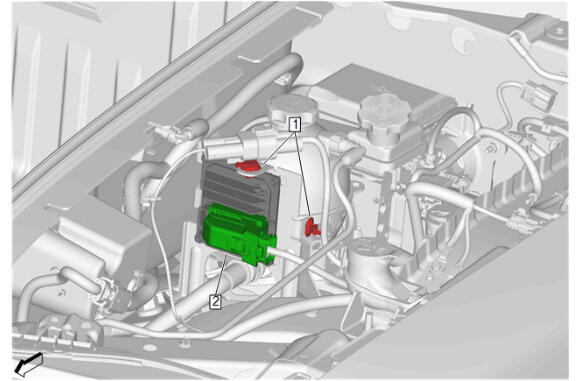

  3. GM5898677Courtesy of GENERAL MOTORS COMPANY

    Remove the body wiring harness retainers (1) as necessary.

  4. Disconnect the electrical connector. (2)

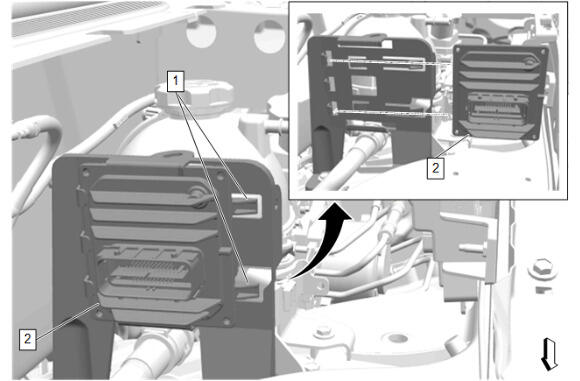

  5. GM6186713Courtesy of GENERAL MOTORS COMPANY

    Release the 2 retaining tabs (1).

  6. Chassis Control Module (2) - Remove
