Installation Procedure

  1. GM5285825Courtesy of GENERAL MOTORS COMPANY

    Generator Shield (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Nut (1) - Install and tighten 22 N.m (16 lb ft)
  3. Raise and support the vehicle. Lifting and Jacking the Vehicle

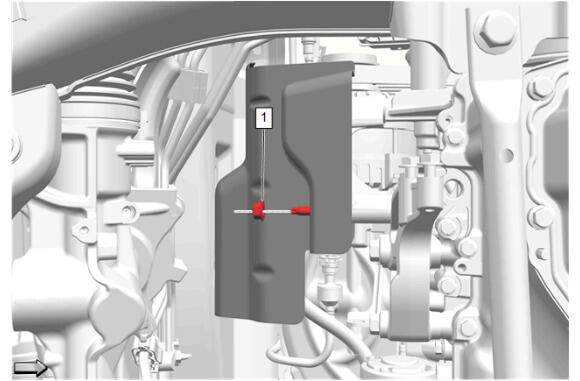

  4. GM5285820Courtesy of GENERAL MOTORS COMPANY

    Generator Nut (1) - Install and tighten 22 N.m (16 lb ft)

  5. Lower the vehicle.

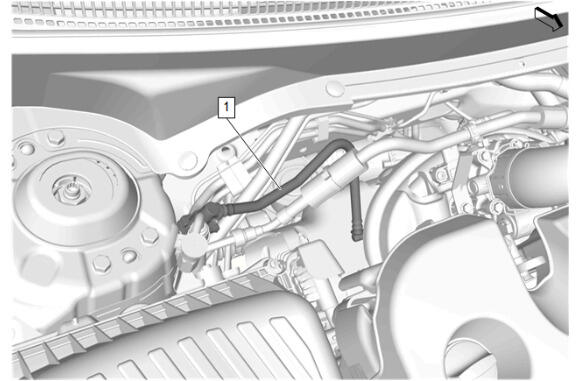

  6. GM6087103Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Front Pipe (1) - Install - Evaporative Emission Front Pipe Replacement - Engine
