Installation Procedure

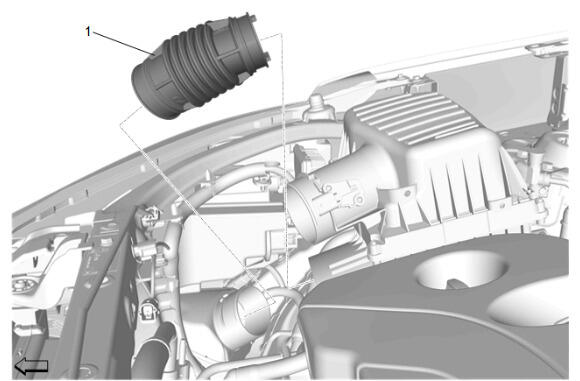

  1. GM6075046Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Align the tab on the intake air duct to the correct position on the intake air baffle.

    Intake Air Duct (1) - Install

  2. Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
