Installation Procedure

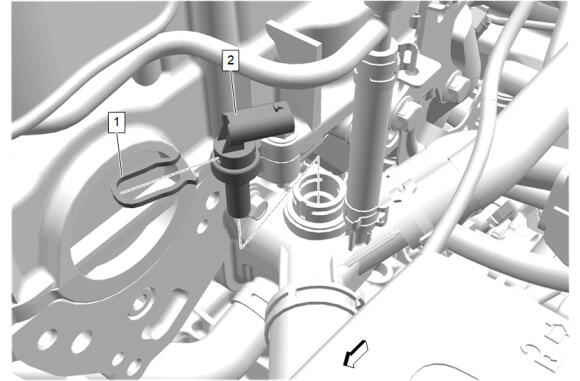

Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Temperature Sensor (2) - Install
Engine Coolant Temperature Sensor Retainer (1) - Install
Connect the electrical connector.

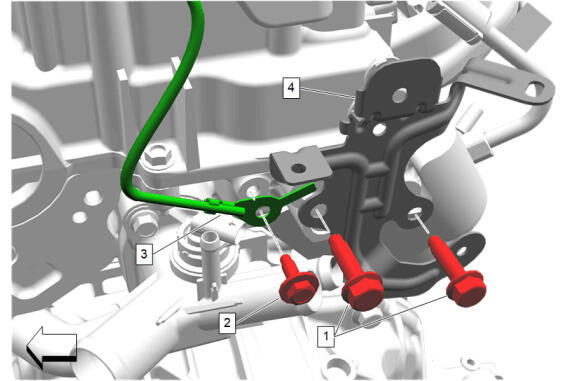

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Engine Ground Cable (3) - Install

CAUTION:

Engine Wiring Harness Bolt (2) - Install and tighten 9 N.m (80 lb in)
Install the engine wiring harness bracket (4) with engine wiring harness.
Engine Wiring Harness Bracket Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Charge Air Cooler Outlet Air Tube - Install - Charge Air Cooler Outlet Air Tube Replacement
Fill the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static)
