Installation Procedure

  1. GM6389520Courtesy of GENERAL MOTORS COMPANY

    Windshield (1) - Install - Adhesive Installation of Windshields

  2. GM6398057Courtesy of GENERAL MOTORS COMPANY

    Clean the inside of the windshield before installing the front view driver information camera bracket (1).

  3. Front View Driver Information Camera Bracket (1) - Install

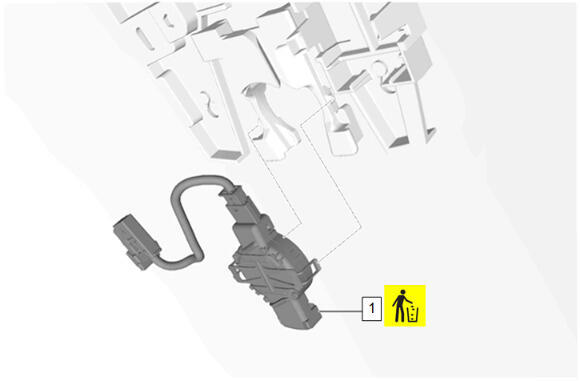

  4. GM6727867Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  5. Windshield Outside Moisture / Ambient Light and Humidity Sensor (1) - Install
  6. GM6398056Courtesy of GENERAL MOTORS COMPANY

    Front View Camera (1) - Install

  7. Slide the front view camera (1) downward to engage.
  8. Secure the retaining tab.
  9. Connect the electrical connector.
  10. GM6389417Courtesy of GENERAL MOTORS COMPANY

    Inside Rearview Mirror (2) - Install

    11. CAUTION:

    Refer to Fastener Caution .

  11. Inside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications
  12. GM6389517Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover (1) - Install

  13. GM6389516Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

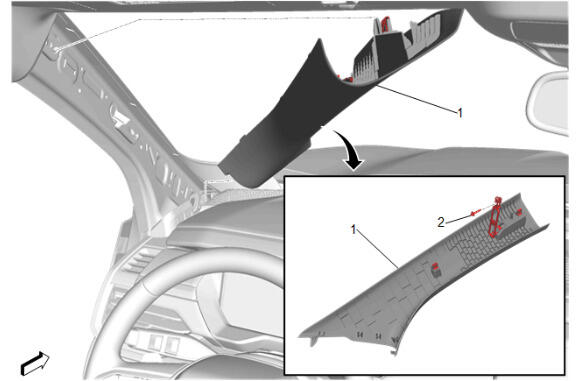

  14. GM6465288Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  15. Windshield Garnish Molding Bolt- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  16. Align the retainer clips with the slots in the A pillar and press the left side and right side windshield garnish molding (1) into place.
  17. Windshield Garnish Molding- Left Side and Right Side (1) - Install [2x]
  18. Enable the SIR System. SIR Disabling and Enabling
  19. GM6463610Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

  20. Air Inlet Grille Panel Retainer (1) - Install [8x]
  21. GM6463613Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Pump Hose (1) @ Windshield Washer Nozzle Hose (2) - Connect

  22. GM6463614Courtesy of GENERAL MOTORS COMPANY

    Hood Rear Outer Air Inlet Seal- Left Side and Right Side (2) - Install [2x]

  23. Hood Rear Outer Air Inlet Seal Retainer - Left Side and Right Side (1) - Install [2x]
  24. GM6463582Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension- Left Side and Right Side (1) - Install [2x]

  25. Clean the wiper motor pivot shaft knurls with a soft wire brush before installing the wiper arms.
  26. Position the wiper arm on the wiper motor pivot shaft.
  27. GM6463565Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Arm (3) - Install [2x]

  28. Windshield Wiper Arm Nut (2) - Install and tighten [2x] - Fastener Specifications
  29. Windshield Wiper Arm Nut Cap (1) - Install [2x]
  30. Align the windshield wiper arm if necessary. Windshield Wiper Arm Adjustment
  31. Perform the camera calibration procedure. Front View Camera - Windshield Learn
