Fastener Specifications

GM6557761Courtesy of GENERAL MOTORS COMPANY
Front Side Door Accessory Switch Mount Plate

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Armrest Pull Cup Fastener [10x] - - 2.5 N.m (22 lb in) Front Side Door Window Control Switch Replacement
GM6389399Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Rear Applique Bolt [2x] - - 2 N.m (18 lb in) Front Side Door Window Frame Rear Applique Replacement

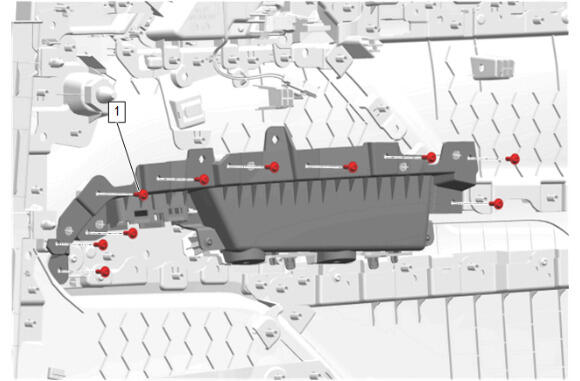

GM6625071Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Accessory Switch Mount Plate

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Armrest Pull Cup Fastener [10x] - - 2.5 N.m (22 lb in) Rear Side Door Window Switch Replacement
GM6389465Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Front Applique Bolt [2x] - - 2 N.m (18 lb in) Rear Side Door Window Frame Front Applique Replacement
GM6483760Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator System

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [5x]
(Threadlocker applied to window regulator studs.)		 - Yes 11 N.m (97 lb in) Front Side Door Window Regulator Replacement
2 Front Side Door Window Regulator Motor Bolt [3x] - - 5.5 N.m (49 lb in) Front Side Door Window Regulator Motor Replacement
GM6483725Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator System

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [4x]
(Threadlocker applied to window regulator studs.)		 - Yes 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement
2 Rear Side Door Window Regulator Motor Bolt [3x] - - 5.5 N.m (49 lb in) Rear Side Door Window Regulator Motor Replacement

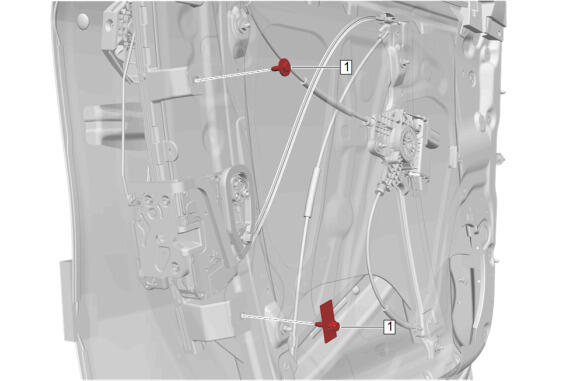

GM6483764Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - Yes 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement

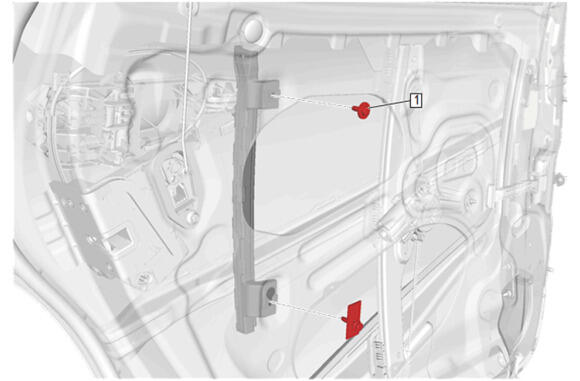

GM6483766Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Channel Rear Retainer

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Retainer Rear Bolt [2x] - Yes 11 N.m (97 lb in) Rear Side Door Window Channel Rear Retainer Replacement

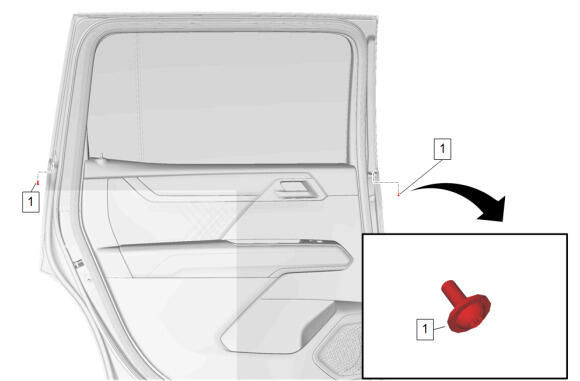

GM6483610Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt [2x] - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement
GM6389397Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement

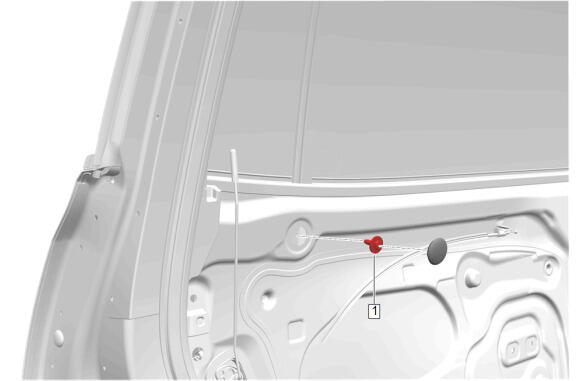

GM6483767Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Weatherstrip Bolt - Yes 11 N.m (97 lb in) Rear Side Door Window Weatherstrip Replacement
