Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

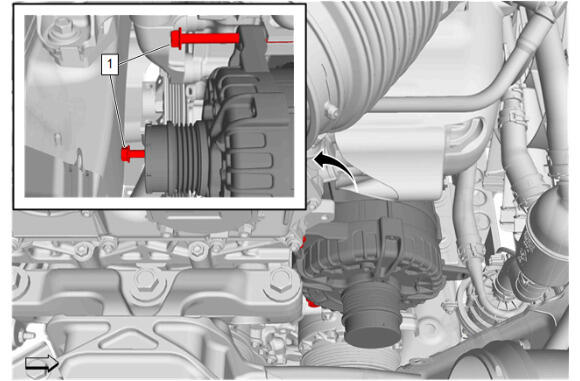

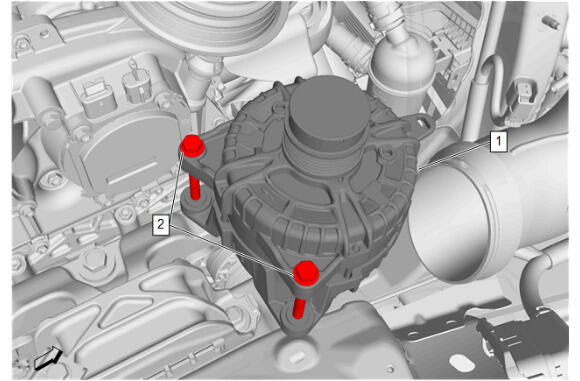

Generator Bolt (1) - Install [2x]
Generator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Generator Bolt (1) - Tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

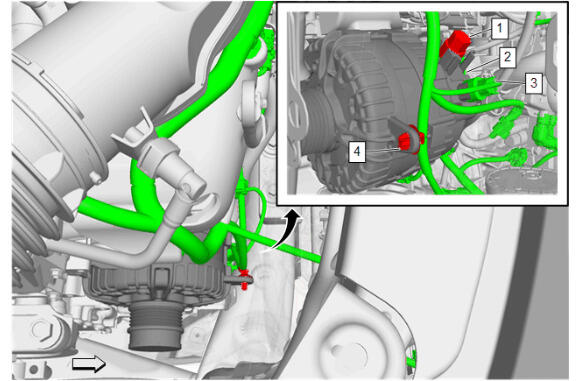

Wiring Harness Retainer (4) - Install
Electrical Connector (3) - Connect
Battery Positive and Negative Cable (2) @ Generator - Connect
Battery Positive and Negative Cable Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

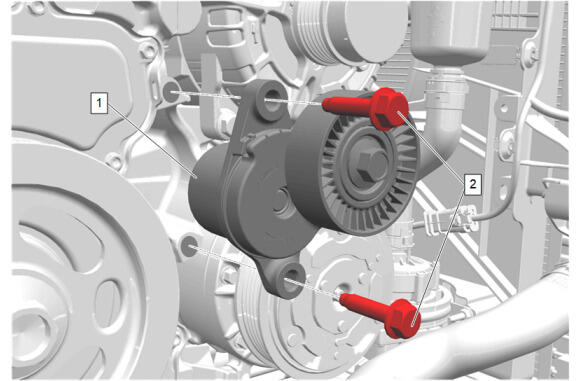

Drive Belt Tensioner (1) - Install
Drive Belt Tensioner Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Position the accessory drive primary belt (2) onto all but one of the pulleys.
Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise, then hold tension.
Install the accessory drive primary belt (2) onto the last pulley. Check to ensure that the accessory drive primary belt is centered on each pulley, and fully seated into ribbed pulleys.
Slowly release tension from the drive belt tensioner (1).
Inspect the accessory drive primary belt (2) again to ensure centered on each pulley.
Courtesy of GENERAL MOTORS COMPANY

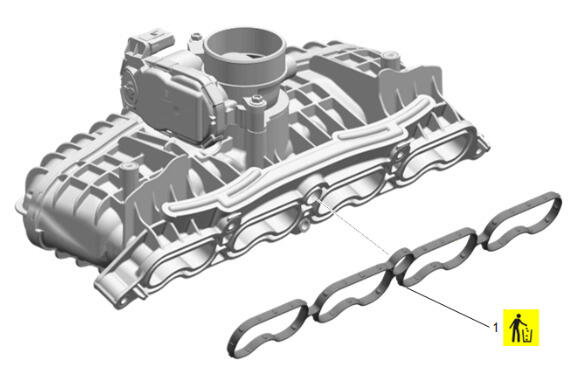

Intake Manifold Gasket @ Intake Manifold (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

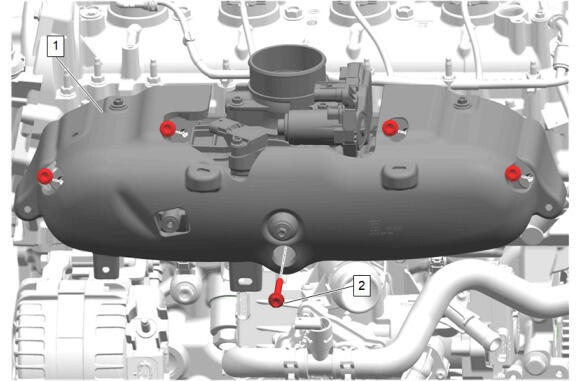

Intake Manifold (1) - Install
Intake Manifold Bolt (2) - Install and hand tighten [5x]
Intake Manifold Bolt (1) - Tighten in sequence [5x] - Fastener Specifications
Oil Level Indicator - Install

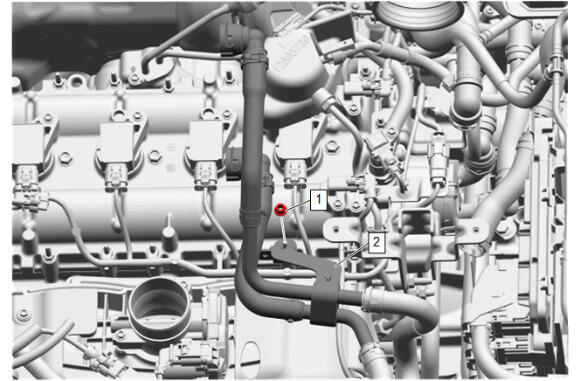

Courtesy of GENERAL MOTORS COMPANY

Oil Level Indicator Tube Bracket Bolt (2) - Install and tighten - Fastener Specifications
Connect the electrical connectors and install the wiring harness retainers as necessary.
Courtesy of GENERAL MOTORS COMPANY

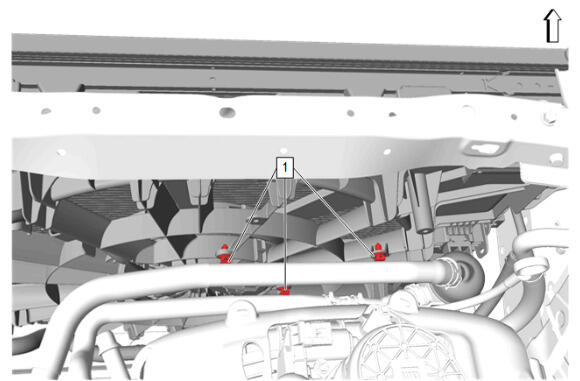

Clip (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

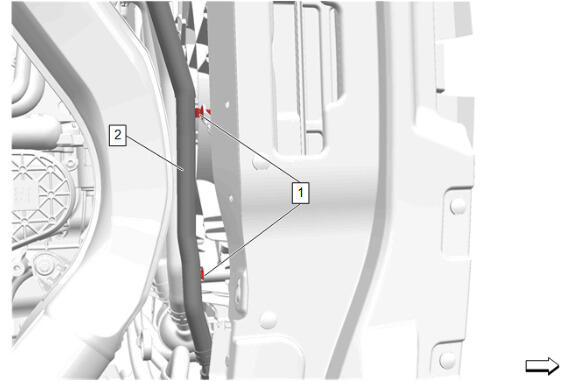

Clip (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Coolant Hose (2) - Install
Charge Air Cooler Inlet Air Hose Clamp Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

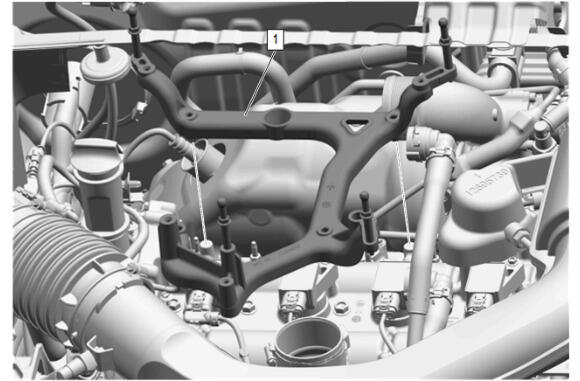

Charge Air Cooler Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

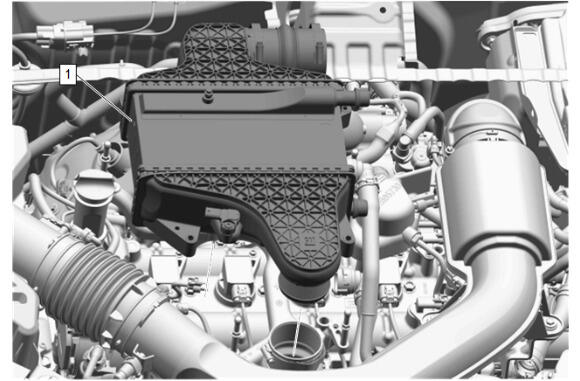

Charge Air Cooler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

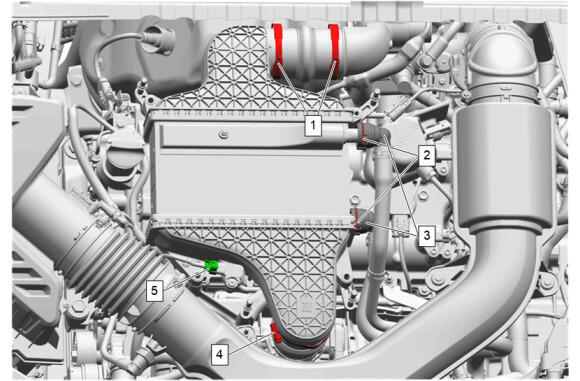

Charge Air Cooler Coolant Hose Clamp (4) - Tighten - Fastener Specifications
Charge Air Cooler Coolant Hose (3) - Install [2x]
Charge Air Cooler Coolant Hose Retainer (2) - Engage [2x]
Charge Air Cooler Outlet Air Hose Clamp (1) - Tighten [2x] - Fastener Specifications
Connect the electrical connector. (5)

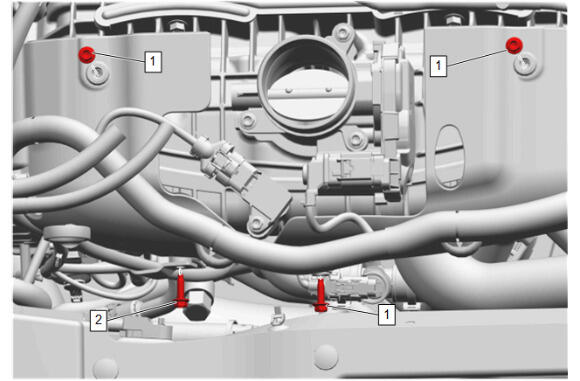

Courtesy of GENERAL MOTORS COMPANY

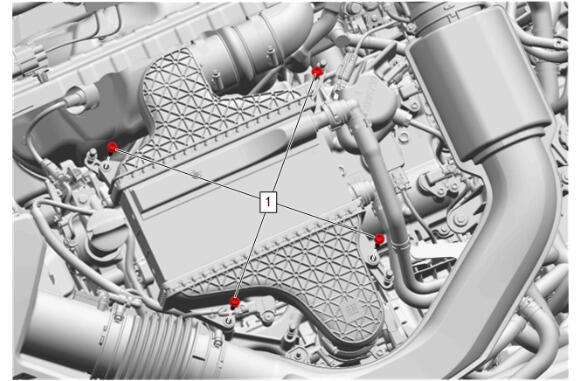

Charge Air Cooler Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

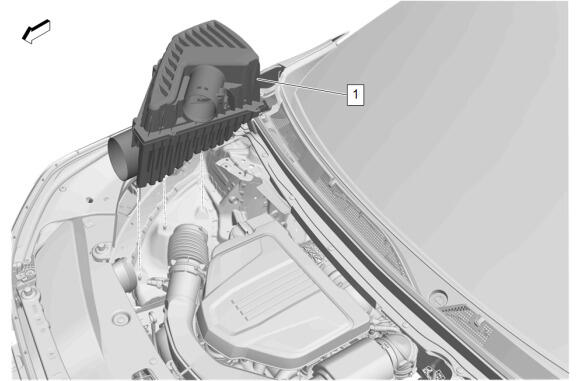

Air Cleaner Assembly (1) - Install
Install the air cleaner housing to retainers.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (4) - Install
Air Cleaner Outlet Duct Nut (3) - Install and tighten - Fastener Specifications
Air Cleaner Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications
Air Cleaner Outlet Duct Clamp (5) - Tighten - Fastener Specifications
Turbocharger Outlet Duct Front Clamp (1) - Tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

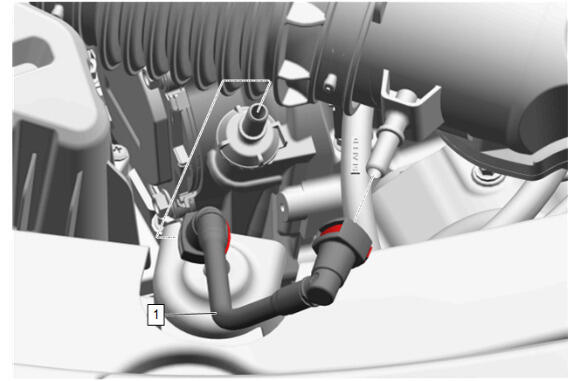

Positive Crankcase Ventilation Fresh Air Tube (1) @ Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service

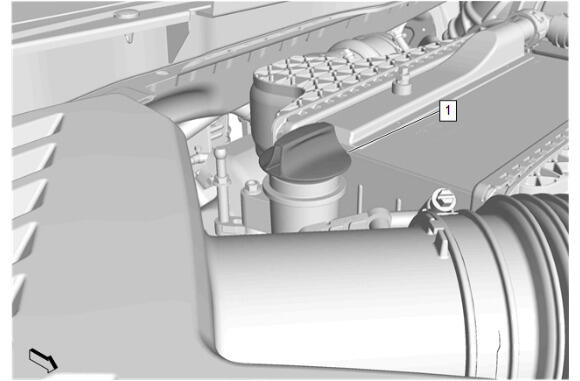

Courtesy of GENERAL MOTORS COMPANY

Oil Filler Cap (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

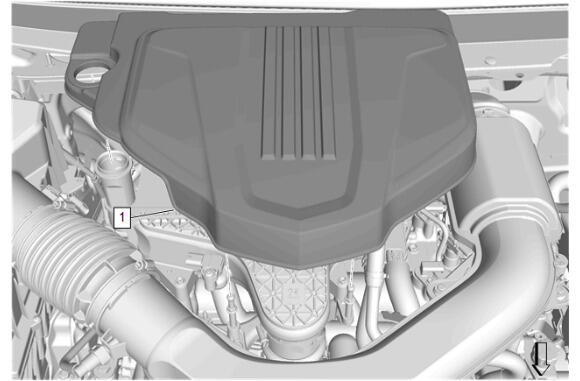

Intake Manifold Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Oil Filler Cap (1) - Install
Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
