Installation Procedure

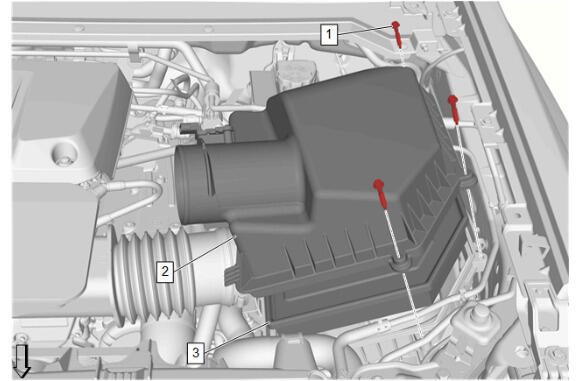

  1. GM6141072Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Element (3) - Install

  2. Air Cleaner Upper Housing (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Air Cleaner Housing Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
  4. Connect the electrical connector.

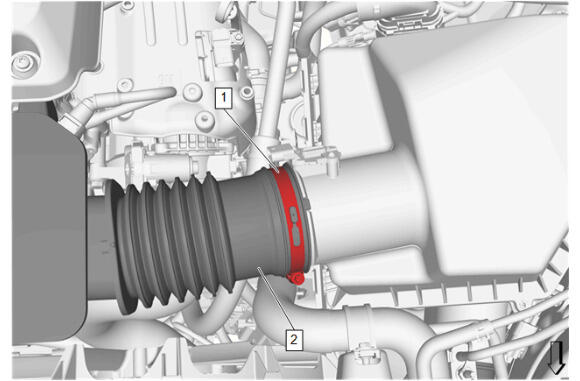

  5. GM6141049Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (2) - Install

  6. Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
