Installation Procedure

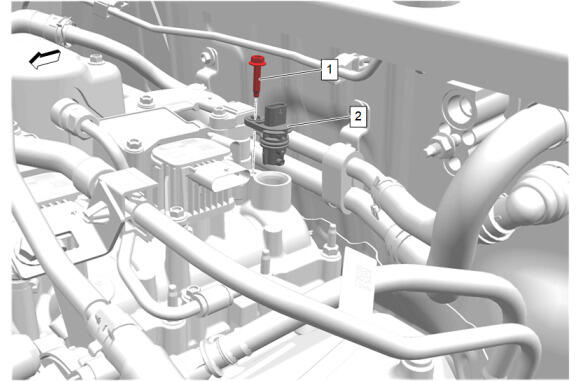

GM6139293Courtesy of GENERAL MOTORS COMPANY
  1. Clean and inspect O-Ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
  2. Camshaft Position Sensor (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Camshaft Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
  4. Connect the electrical connector.
