Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

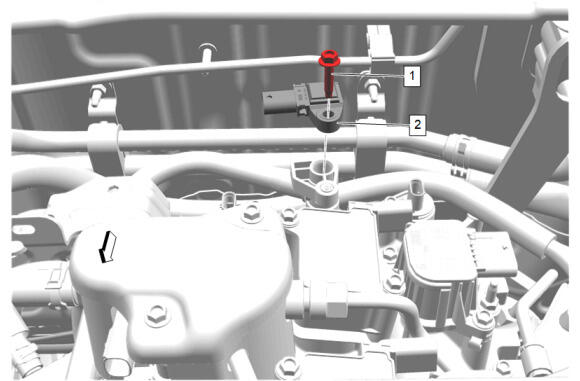

Crankcase Pressure Sensor Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

If equipped, push down on the front of the intake manifold cover (2).
{If equipped} Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
