Installation Procedure

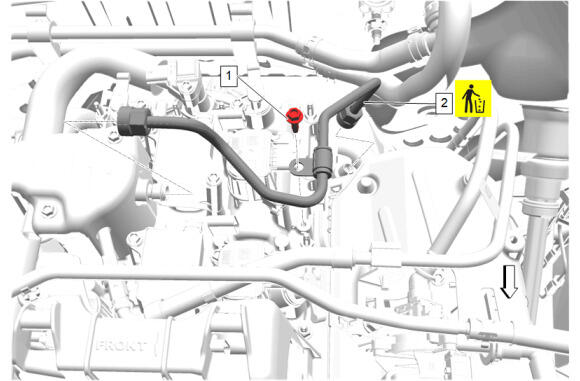

Fuel Feed Intermediate Pipe (2) - Install NEW
- Fuel Injection Fuel Feed Pipe Bracket Bolt (1) - Install and tighten - Fastener Specifications

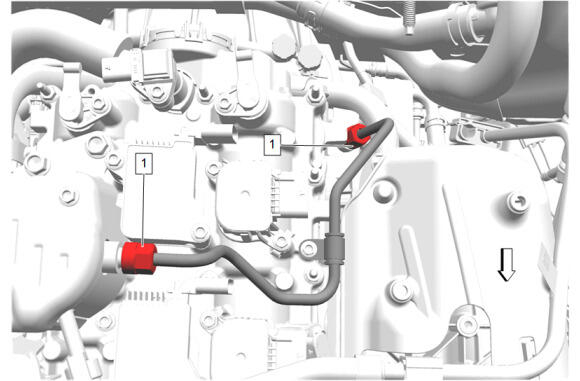

Fuel Feed Intermediate Pipe Nut (1) @ Fuel Feed Intermediate Pipe - Tighten [2x] - Fastener Specifications
{If equipped} Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
If equipped, push down on the front of the intake manifold cover (2).
- {If equipped} Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Pressurize the fuel system and inspect for leaks.
CAUTION:
