Installation Procedure
- WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise canceling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

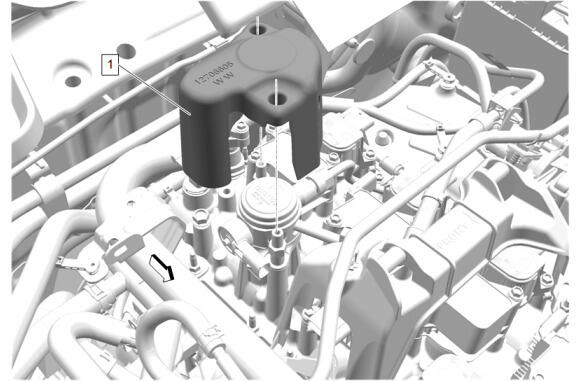

Fuel Pump Insulator (1) - Install

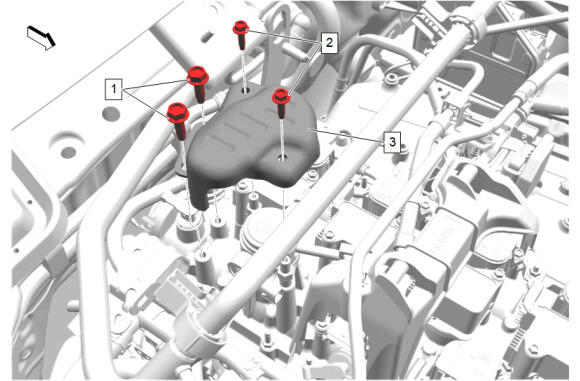

Fuel Injection Pump Bracket (3) - Install
- Fuel Pump Shield Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Fuel Pump Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
{If equipped} Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
If equipped, push down on the front of the intake manifold cover (2).
- {If equipped} Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications

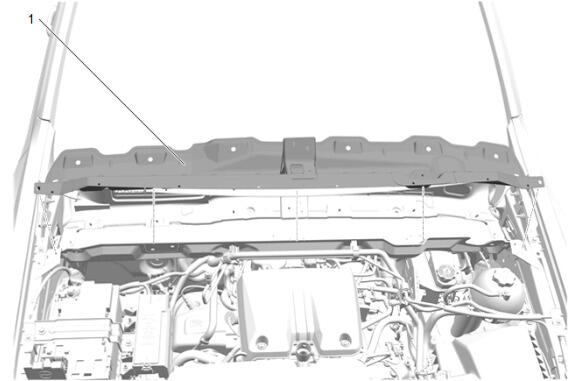

Plenum Front Panel Outer Reinforcement (1) - Install - Plenum Front Panel Removal and Installation (UXA) , or Plenum Front Panel Removal and Installation (- UXA)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution .
