Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

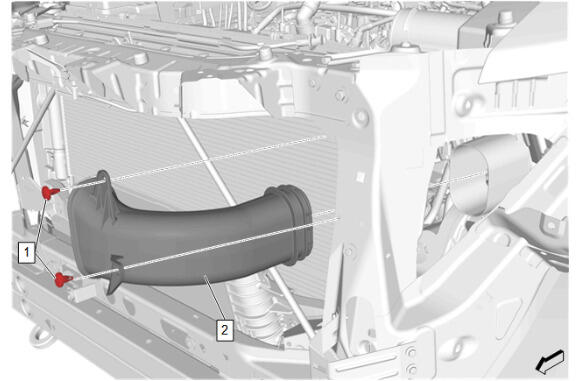

Intake Air Duct (2) - Install
Intake Air Duct Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

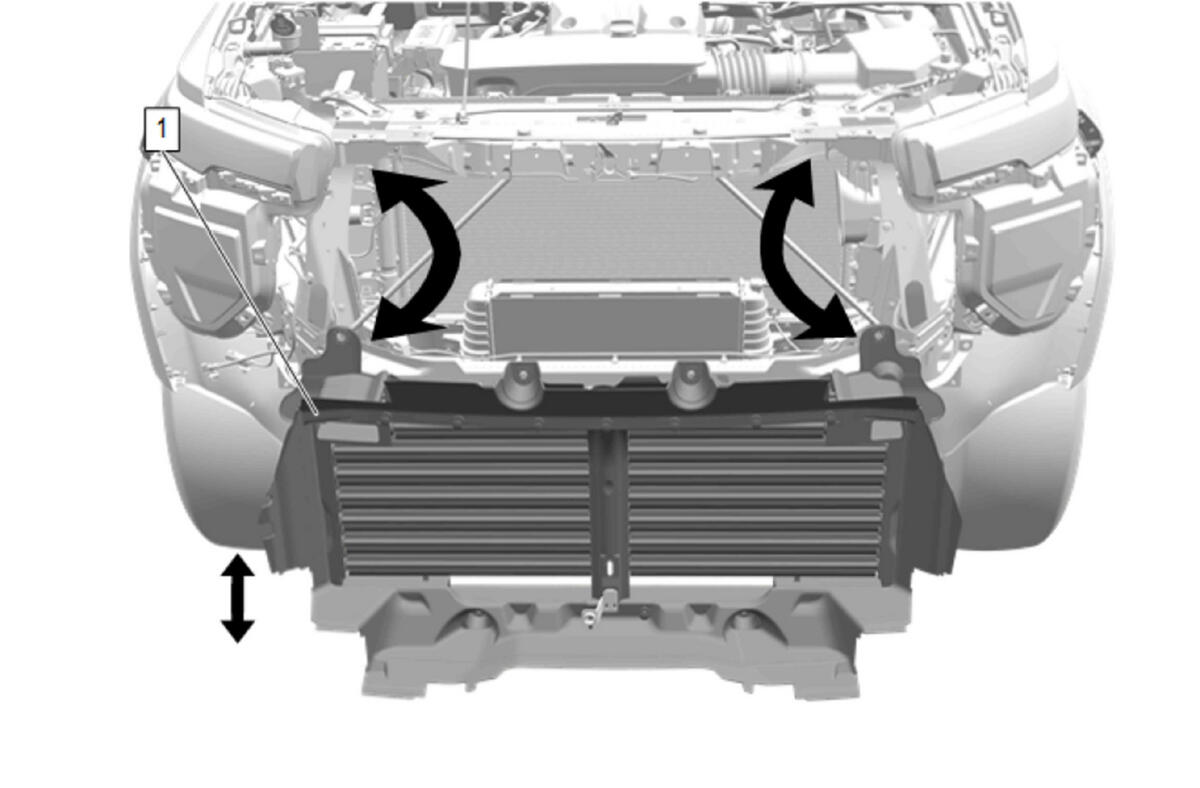

Front Bumper Shutter (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

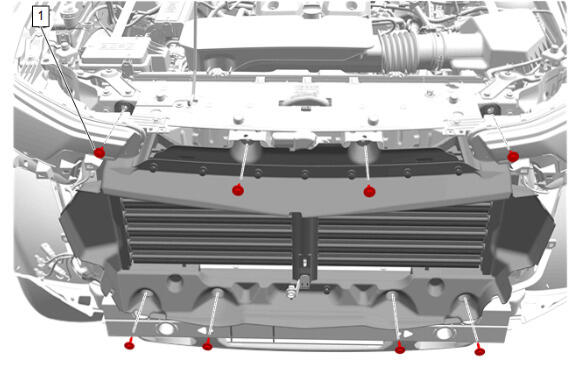

Front Bumper Shutter Bolt (1) - Install and tighten [8x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

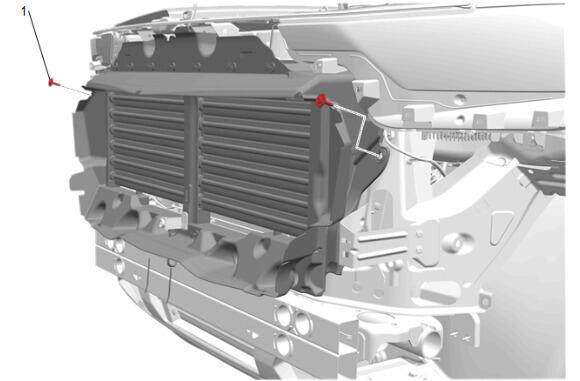

Front Bumper Shutter Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

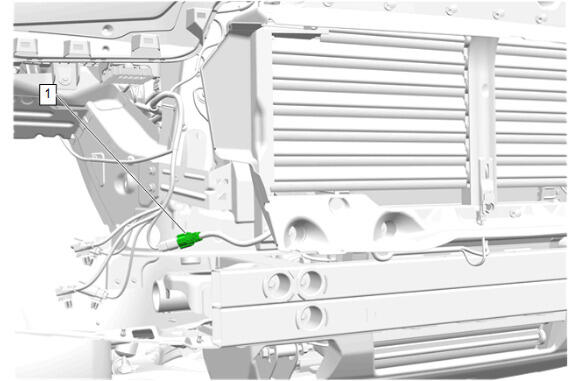

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

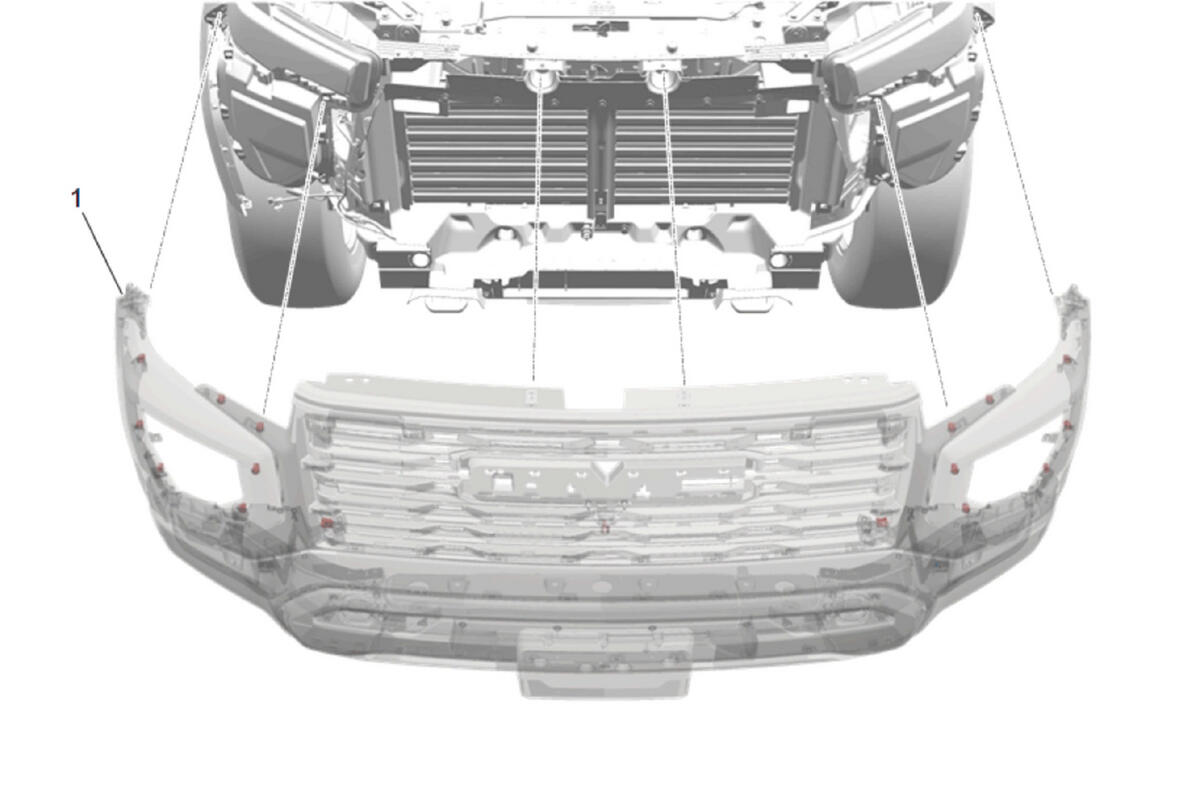

With the aid of an assistant, install the fascia. (1) Front Bumper Fascia Removal and Installation (- SD0) , or Front Bumper Fascia Removal and Installation (SD0)
