Installation Procedure

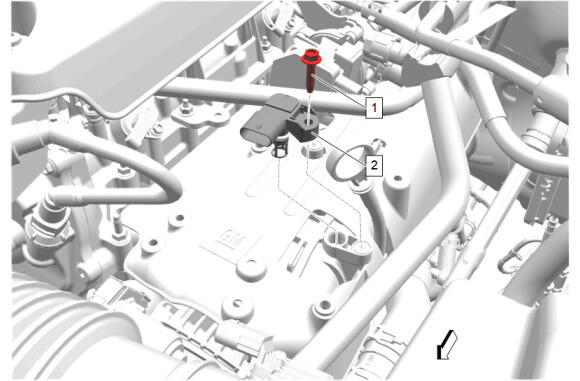

  1. GM6137659Courtesy of GENERAL MOTORS COMPANY

    Intake Air Pressure and Temperature Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Intake Air Pressure and Temperature Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector.
  4. Perform the intake system learned values reset. Intake System Learned Values Reset
