Installation Procedure

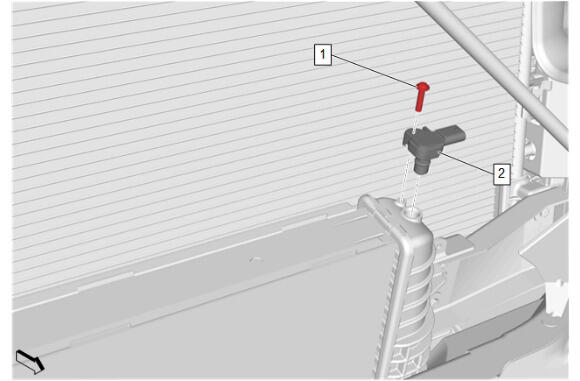

  1. GM6158009Courtesy of GENERAL MOTORS COMPANY

    Throttle Inlet Absolute Pressure Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Charge Air Cooler Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector.

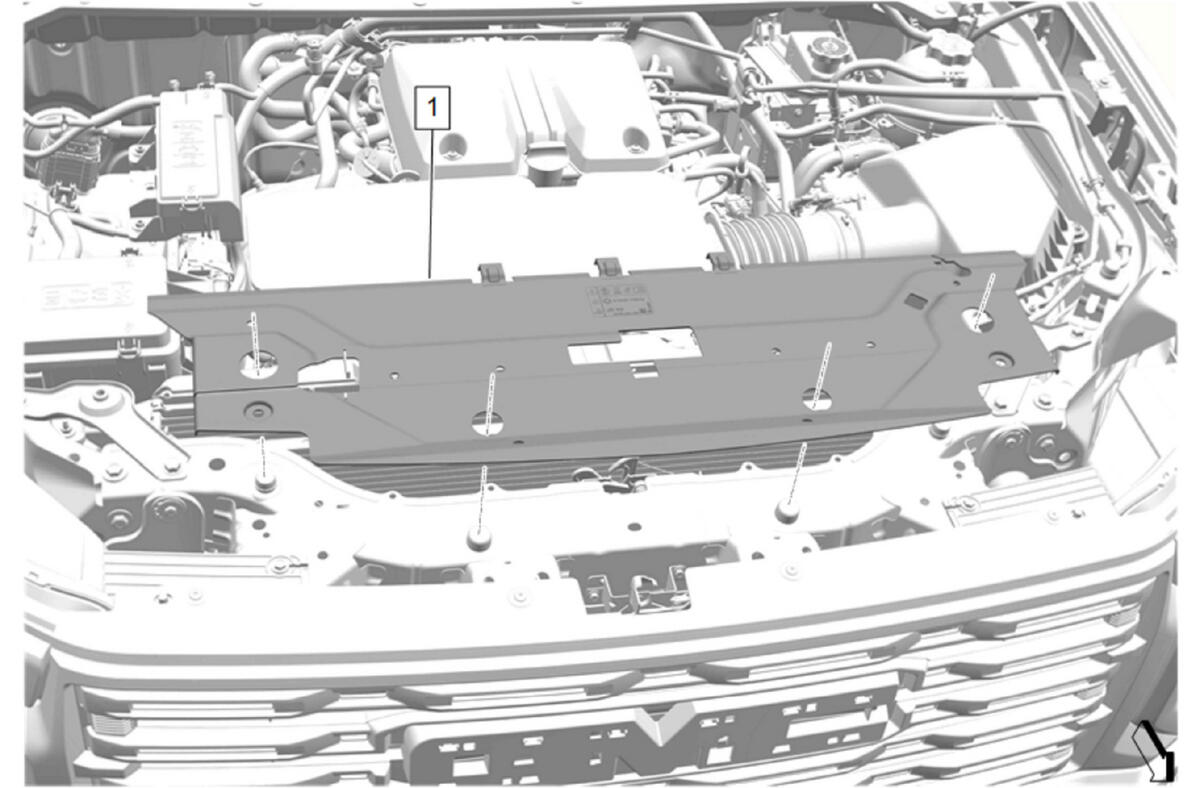

  4. GM6183587Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Install

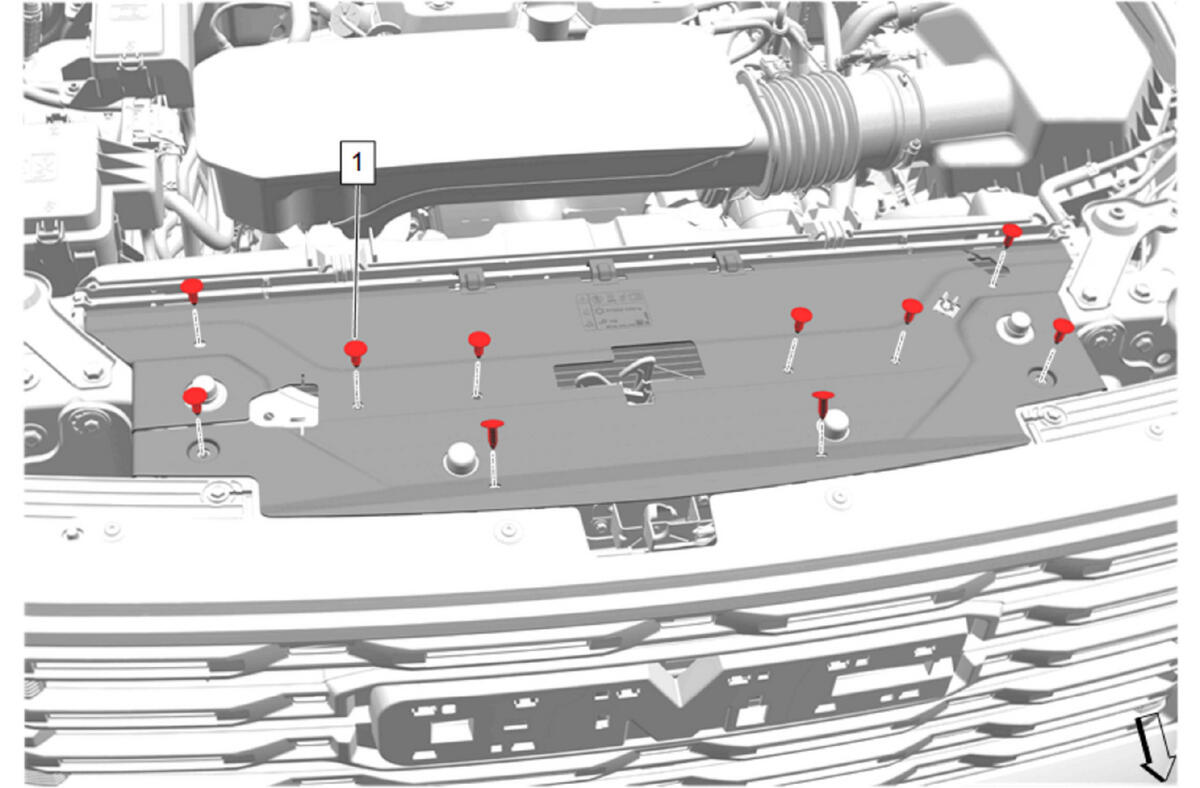

  5. GM6183586Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer (1) - Install [10x]
