Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

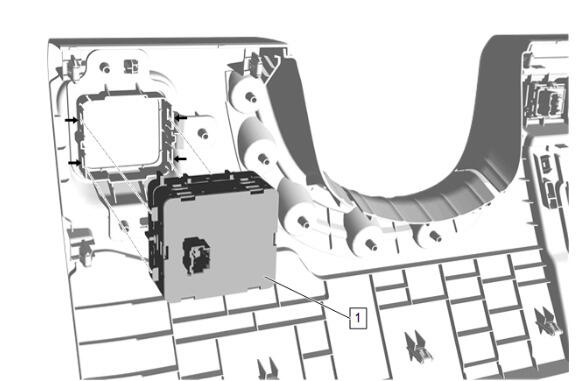

Trailer Brake Control Switch (1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

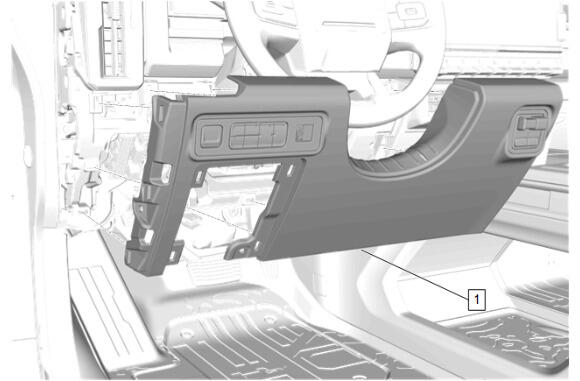

Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

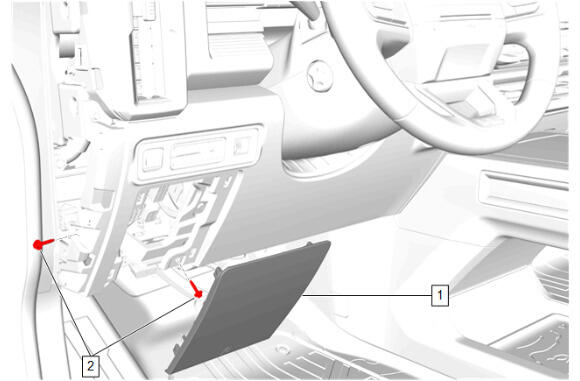

Instrument Panel Knee Bolster Bolt (2) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Fuse Block Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

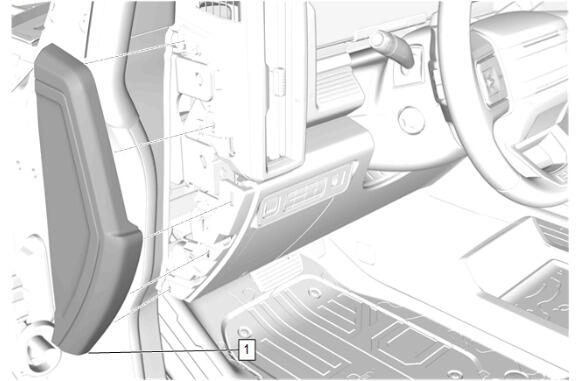

Instrument Panel Outer Trim Cover (1) - Install
