Fastener Specifications

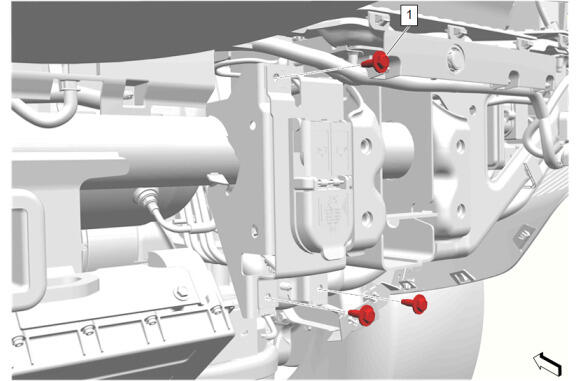

Tow Vehicle Electrical Receptacle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Tow Vehicle Electrical Receptacle Bracket Bolt [3x] | - | - | 9 N.m (80 lb in) | Tow Vehicle Electrical Receptacle Replacement (GWH/GQI/GQO) , or Tow Vehicle Electrical Receptacle Replacement (GQ2/GQB/GQC) |

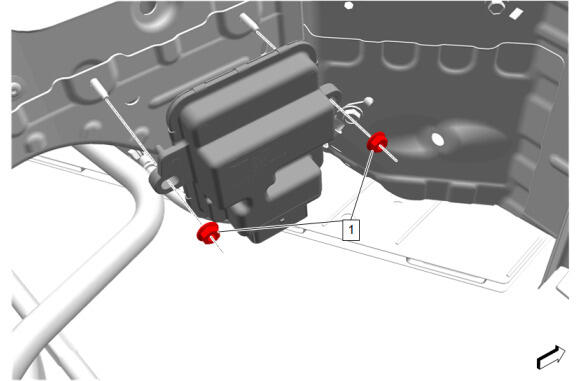

Trailer Brake Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Brake Power Control Module Nut [2x] | - | - | 9 N.m (80 lb in) | Trailer Brake Control Module Replacement |

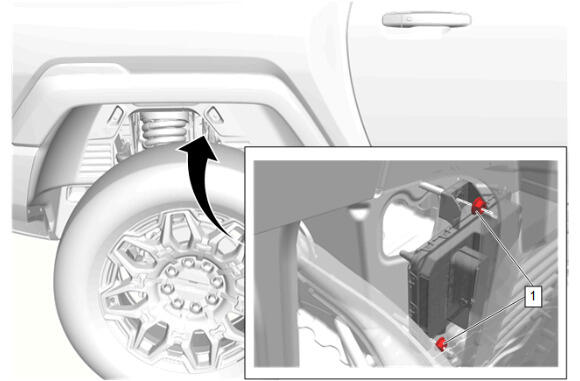

Trailer Lamp Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Lamp Control Module Bracket Nut [2x] | - | - | 9 N.m (80 lb in) | Trailer Lamp Control Module Replacement |
Trailer Tire Pressure Indicator Sensor Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Tire Pressure Indicator Sensor Nut | - | - | 9 N.m (80 lb in) | Trailer Tire Pressure Indicator Sensor Replacement |
