Removal Procedure

  1. Using the scan tool, deflate the automatic level control air supply reservoir
  2. GM5807720Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the fascia. (1) Rear Bumper Fascia Removal and Installation (GQH / GQI / GQO) , or Rear Bumper Fascia Removal and Installation (GQ2 / GQB / GQC)

  3. GM6051511Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector Retainer (1) - Remove [3x]

  4. GM6051510Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector Bolt (1) - Remove [17x]

  5. GM6051509Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Deflector Bolt (1) - Remove [6x]

  6. GM5834765Courtesy of GENERAL MOTORS COMPANY

    Underbody Rear Air Rear Deflector (1) - Remove

  7. GM6058007Courtesy of GENERAL MOTORS COMPANY

    Automatic Level Control Air Compressor Tube (1) - Remove

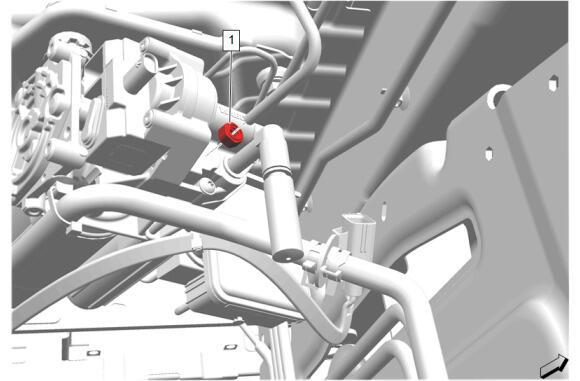

  8. GM6058012Courtesy of GENERAL MOTORS COMPANY

    Automatic Level Control Air Compressor Tube Fitting (2) - Remove
