Installation Procedure

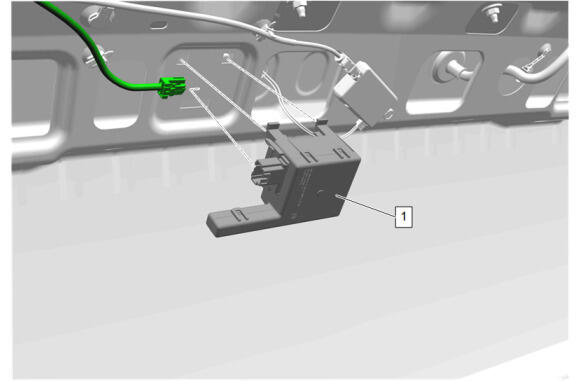

  1. GM6280426Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Remote Function Actuator Module(1) - Install

  2. Secure the retaining tab.
  3. Connect the electrical connector.
  4. Headlining Trim Panel - Install - Headlining Trim Panel Removal and Installation
