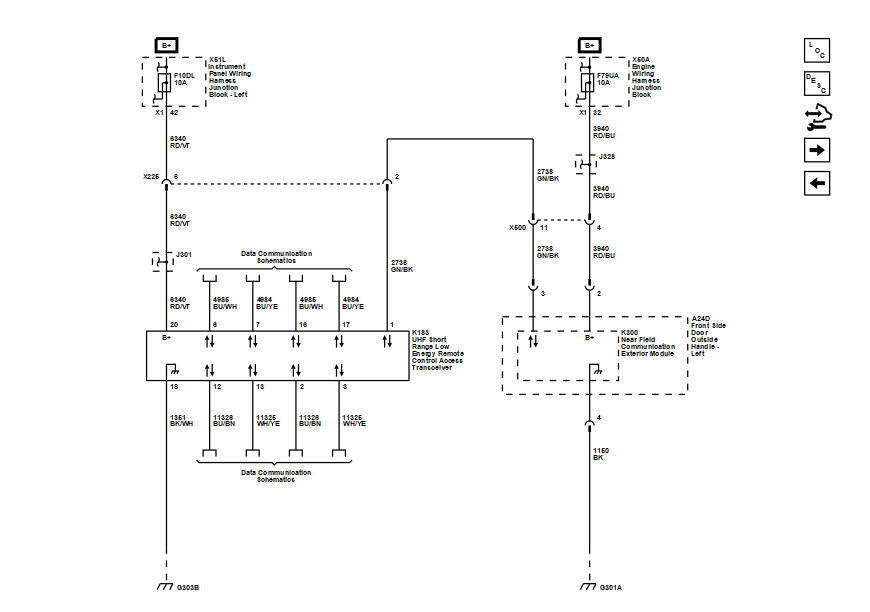

Keyless Entry - Virtual Key Modules (BOY)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
