Fastener Specifications

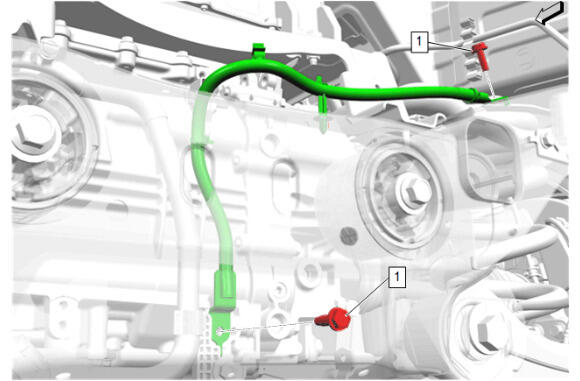

GM6302264Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Auxiliary Battery Negative Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Auxiliary Battery Negative Cable Bolt [2x] - - 22 N.m (16 lb ft) Auxiliary Battery Negative Cable Replacement

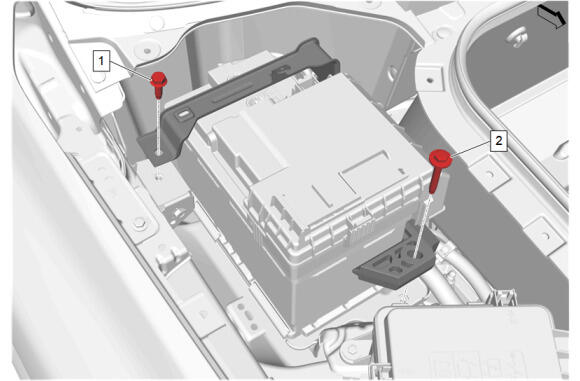

GM6301200Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Hold Down Strap and Battery Hold Down Retainer Bolt Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Hold Down Strap Bolt - - 22 N.m (16 lb ft) Battery Hold Down Strap Replacement
2 Battery Hold Down Retainer Bolt - - 22 N.m (16 lb ft) Battery Replacement

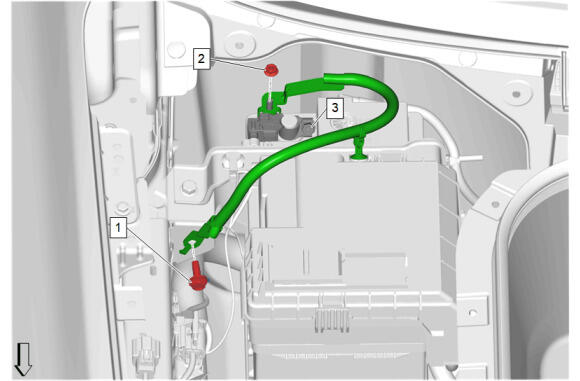

GM6301182Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Negative Cable and Battery Monitor Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Bolt - - 22 N.m (16 lb ft) Battery Negative Sensor Cable Replacement
2 Battery Negative Cable Nut - - 9 N.m (80 lb in) Battery Negative Cable Disconnection and Connection
3 Battery Monitor Module - - 4.5 N.m (40 lb in) Battery Monitor Module Replacement

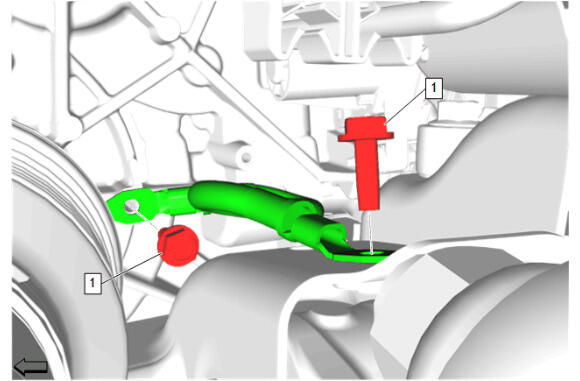

GM6301171Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Negative Cable - Left Side (Front Drive Unit to Front Cradle)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Bolt [2x] - - 22 N.m (16 lb ft) Battery Negative Cable Replacement - Left Side (Lower Frame to Front Cradle)Battery Negative Cable Replacement - Left Side (Lower Frame to Rear Cradle)

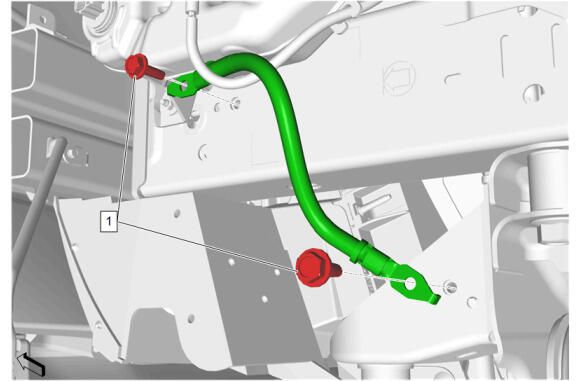

GM6301172Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Negative Cable - Left Side (Lower Frame to Front Cradle)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Bolt [2x] - - 22 N.m (16 lb ft) Battery Negative Cable Replacement - Left Side (Lower Frame to Front Cradle)

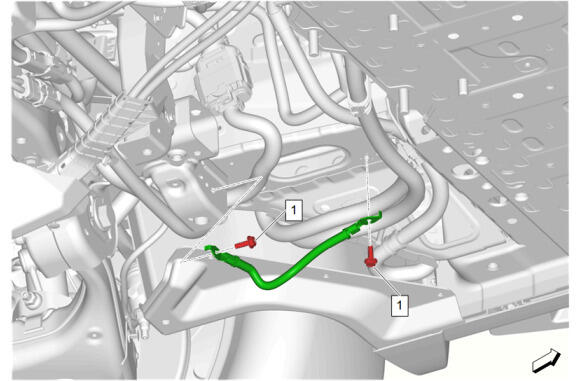

GM6301175Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Negative Cable - Left Side (Lower Frame to Rear Cradle)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Bolt [2x] - - 22 N.m (16 lb ft) Battery Negative Cable Replacement - Left Side (Lower Frame to Rear Cradle)

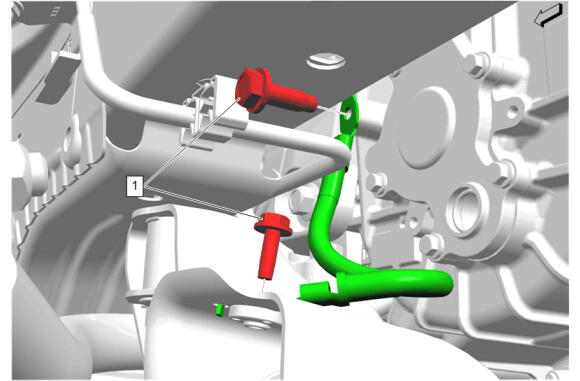

GM6301176Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Negative Cable - Right Side (Front Drive Unit to Front Cradle)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Bolt [2x] - - 22 N.m (16 lb ft) Battery Negative Cable Replacement - Right Side (Front Drive Unit to Front Cradle)

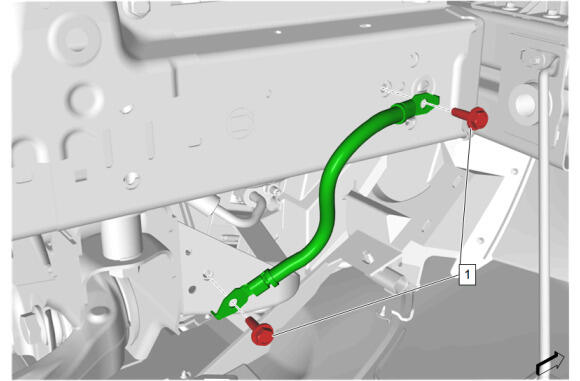

GM6301177Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Negative Cable - Right Side (Lower Frame to Front Cradle)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Bolt [2x] - - 22 N.m (16 lb ft) Battery Negative Cable Replacement - Right Side (Lower Frame to Front Cradle)

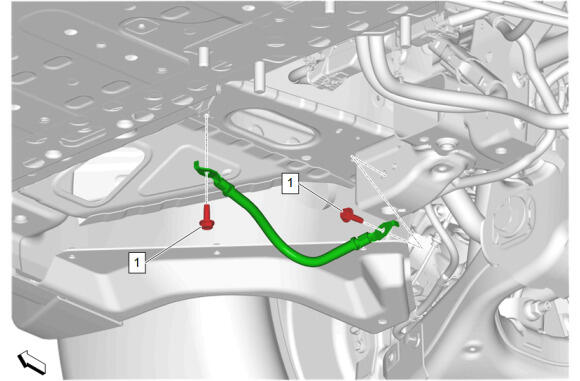

GM6301179Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Negative Cable - Right Side (Lower Frame to Rear Cradle)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Bolt [2x] - - 22 N.m (16 lb ft) Battery Negative Cable Replacement - Right Side (Lower Frame to Rear Cradle)

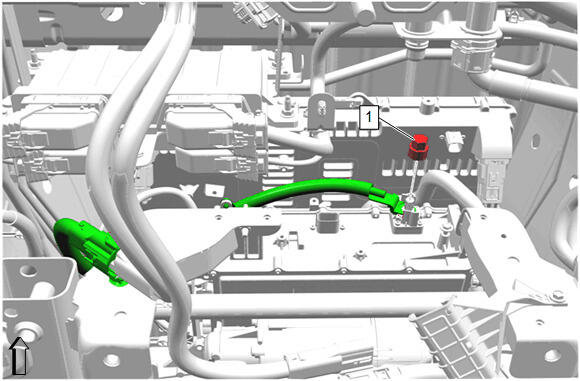

GM6301190Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Positive and Negative Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Auxiliary Battery Positive Cable Nut - - 15 N.m (11 lb ft) Battery Positive and Negative Cable Replacement

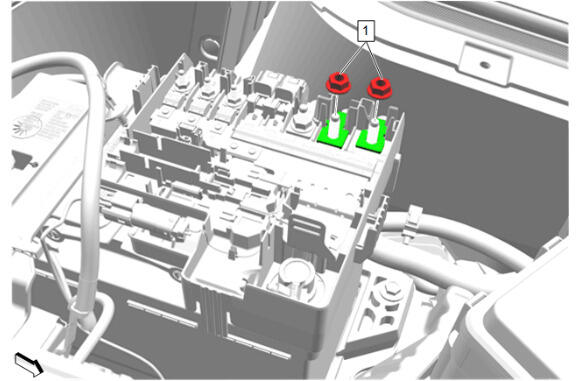

GM6302365Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Positive and Negative Cable Extension Cable @ Battery Distribution Engine Compartment Fuse Block

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Nut [2x] - - 15 N.m (11 lb ft) Battery Positive and Negative Cable Extension Cable Replacement

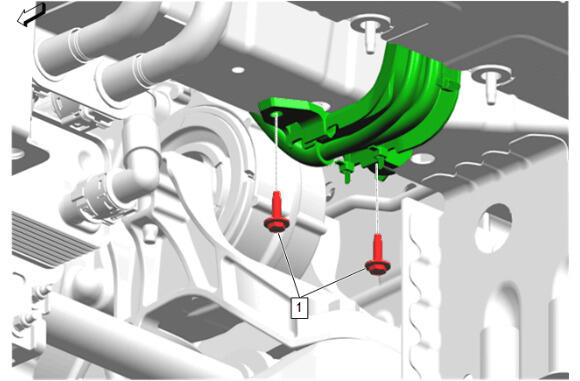

GM6301183Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Positive and Negative Cable Extension Cable @ Front Underbody

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive and Negative Cable Extension Cable Channel Bolt [2x] - - 9 N.m (80 lb in) Battery Positive and Negative Cable Extension Cable Replacement

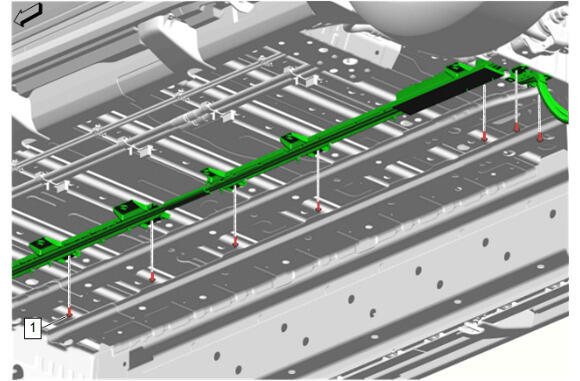

GM6301186Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Positive and Negative Cable Extension Cable @ Middle Underbody

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive and Negative Cable Extension Cable Channel Bolt [7x] - - 9 N.m (80 lb in) Battery Positive and Negative Cable Extension Cable Replacement

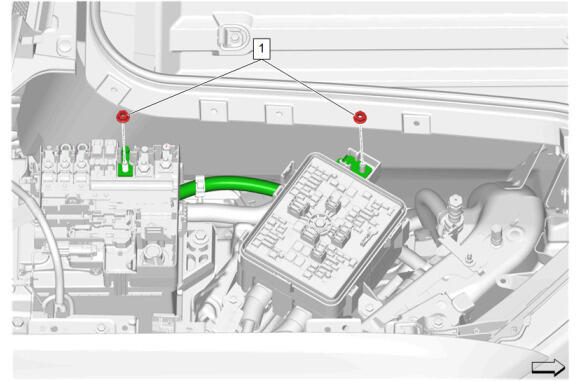

GM6301195Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Positive Junction Block Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Positive Cable Junction Block Lead Nut [2x] - - 14 N.m (10 lb ft) Battery Positive Junction Block Cable Replacement

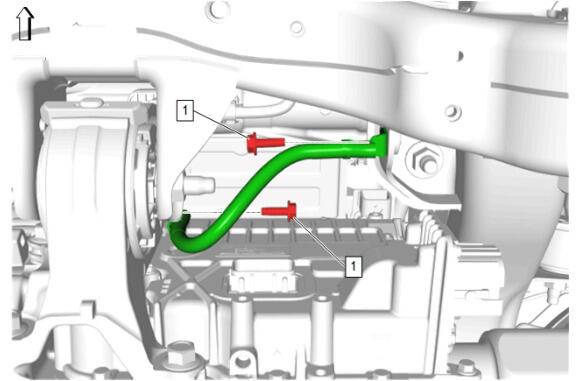

GM6302267Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery to Battery Negative Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Negative Cable Ground Bolt [2x] - - 22 N.m (16 lb ft) Battery to Battery Negative Cable Replacement

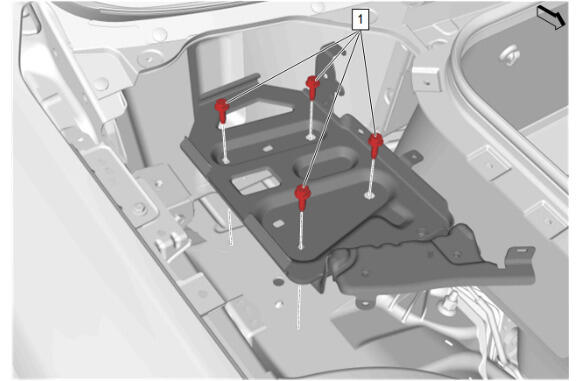

GM6301362Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Battery Tray

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Battery Tray Bolt [4x] - - 22 N.m (16 lb ft) Battery Tray Replacement

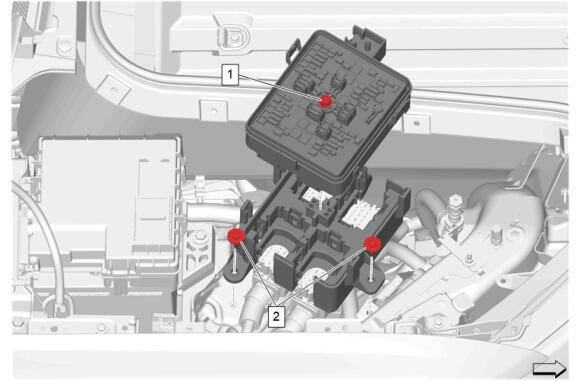

GM6301202Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Engine Wiring Harness Junction Block and Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Junction Block Bolt - - 22 N.m (16 lb ft) Engine Wiring Harness Junction Block Replacement
2 Engine Wiring Harness Fuse Block Bracket Bolt [2x] - - 9 N.m (80 lb in) Engine Wiring Harness Fuse Block Bracket Replacement

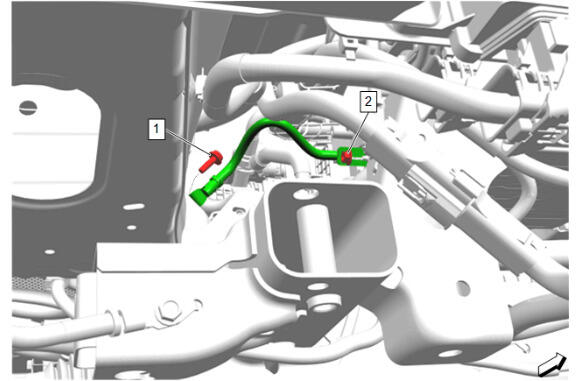

GM6301285Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Starter Generator Negative Ground Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Power Line Communication Module Bolt - - 22 N.m (16 lb ft) Starter Generator Negative Ground Cable Replacement
2 Power Line Communication Module Nut - - 22 N.m (16 lb ft) Starter Generator Negative Ground Cable Replacement

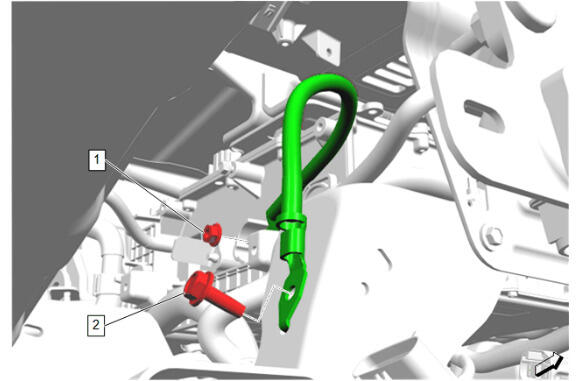

GM6301286Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Starter Generator Positive Extension Cable

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Power Line Communication Module Nut - - 22 N.m (16 lb ft) Starter Generator Positive Extension Cable Replacement
2 Power Line Communication Module Bolt - - 22 N.m (16 lb ft) Starter Generator Positive Extension Cable Replacement
