Removal Procedure

Remove the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
Remove underbody panels as necessary. Underbody Panel Component Locator
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Wheelhouse Panel Rear Liner - Right Side (1) - Remove - Rear Wheelhouse Panel Rear Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

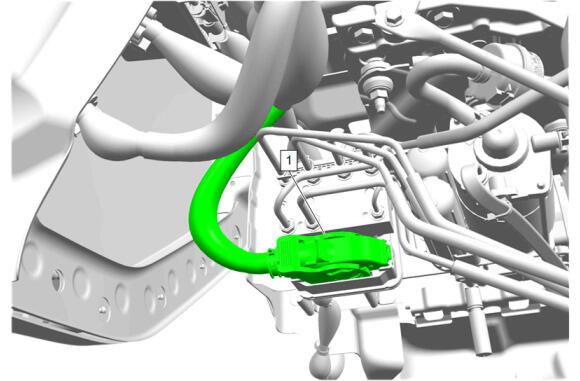

Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

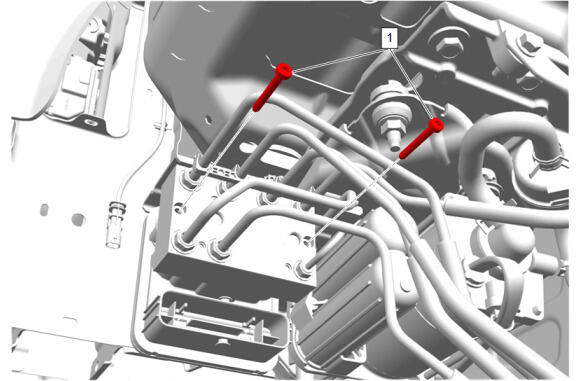

Automatic Level Control Air Compressor Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

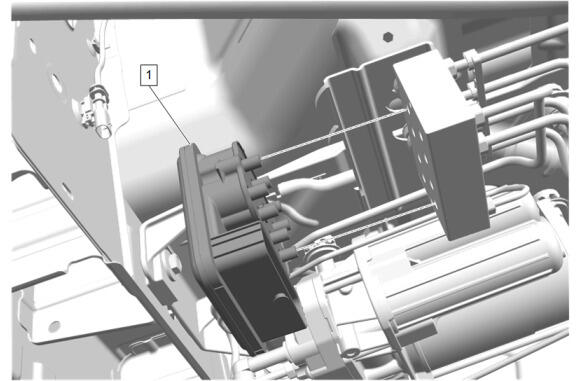

Air Suspension Control Module (1) - Remove
