Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

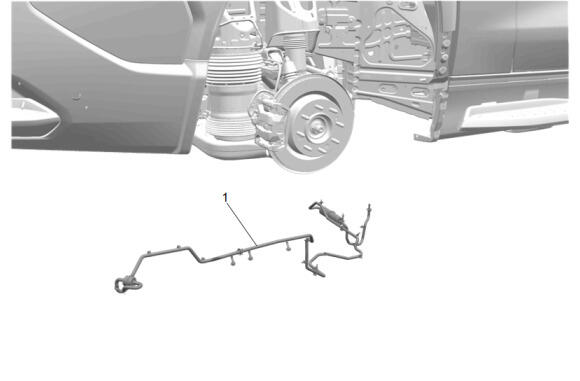

Automatic Level Control Air Compressor Inlet Tube (1) - Install
Courtesy of GENERAL MOTORS COMPANY

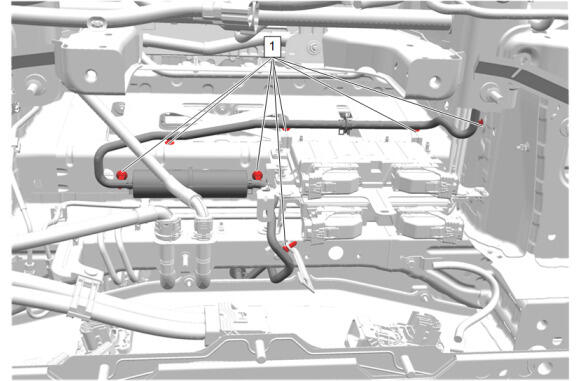

Automatic Level Control Air Compressor Inlet Tube (2) - Install
Automatic Level Control Air Compressor Tube Clip (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

Automatic Level Control Air Compressor Tube Clip (1) Engage [6x]
Courtesy of GENERAL MOTORS COMPANY

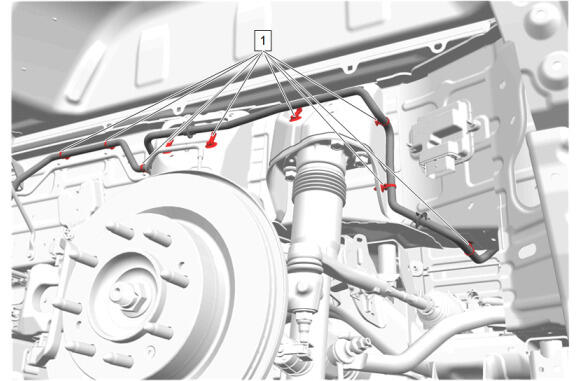

Automatic Level Control Air Compressor Tube Clip (1) Engage [9x]
Courtesy of GENERAL MOTORS COMPANY

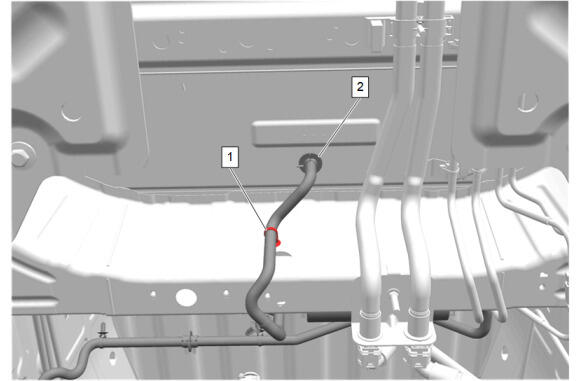

Automatic Level Control Air Compressor Inlet Tube (3) @Automatic Level Control Module - Install
Automatic Level Control Air Compressor Tube Clip (1) Engage
Reposition the hose clamp (1) on the automatic level control air compressor inlet tube (3). Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Wheelhouse Panel Front Liner - Right Side (1) - Install - Rear Wheelhouse Panel Front Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Rear Wheelhouse Panel Rear Liner - Right Side (1) - Install - Rear Wheelhouse Panel Rear Liner Replacement
Install underbody panels as necessary. Underbody Panel Component Locator
Install the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
