Fastener Specifications

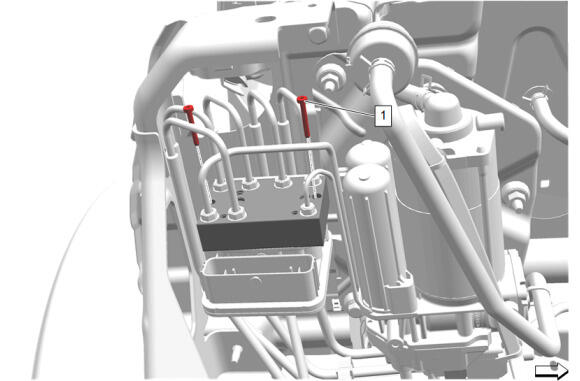

GM6162578Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Level Control Air Compressor Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Bolt [2x] - - 2.5 N.m (22 lb in) Air Suspension Control Module Replacement

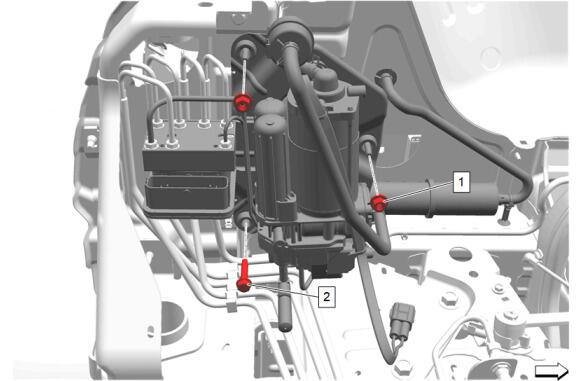

GM6162582Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Level Control Air Compressor Bolt And Automatic Level Control Air Compressor Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Nut [2x] - - 22 N.m (16 lb ft) Automatic Level Control Module Replacement
2 Automatic Level Control Air Compressor Bolt - - 22 N.m (16 lb ft) Automatic Level Control Module Replacement

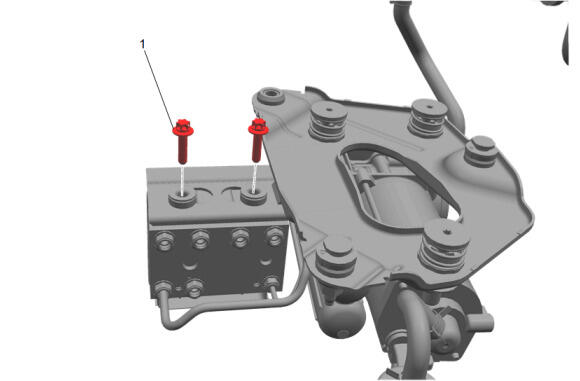

GM6162610Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Level Control Air Compressor Bolt Manifold To Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Bolt [2x] - - 5.65 N.m (50 lb in) Air Suspension Control Module Manifold Replacement

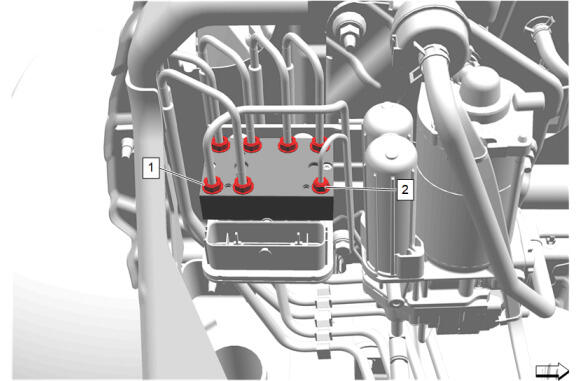

GM6162665Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Controller

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube - 6 MM
[6x]		 - - 5.5 N.m (49 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Control Module Manifold
2 Automatic Level Control Air Compressor Tube - 4 MM - - 5.5 N.m (49 lb in) Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Control Module Manifold

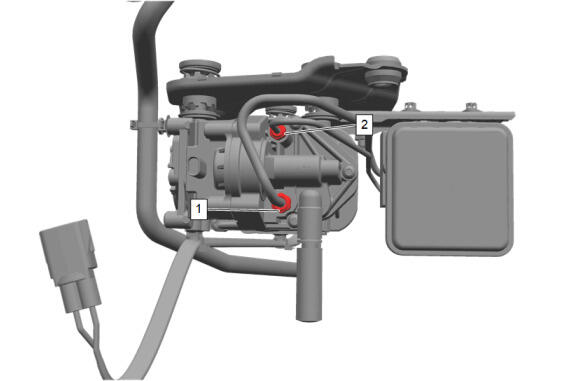

GM6162614Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Compressor Tube - 6 MM - - 3.5 N.m (31 lb in) Automatic Level Control Air Compressor Tube Replacement - Pressure
2 Automatic Level Control Air Compressor Tube - 4 MM - - 2.25 N.m (20 lb in) Automatic Level Control Air Compressor Tube Replacement - Boost

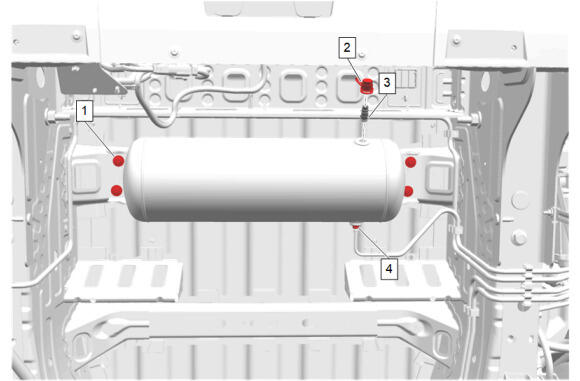

GM6464550Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Automatic Level Control Air Supply Reservoir

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Automatic Level Control Air Supply Reservoir Nut [4x] - - 22 N.m (16 lb ft) Automatic Level Control Air Supply Reservoir Replacement
2 Automatic Level Control Air Supply Reservoir Coupling Cap - - 2 N.m (18 lb in) Automatic Level Control Air Supply Reservoir Coupling Replacement
3 Automatic Level Control Air Supply Reservoir Coupling - - 10 N.m (7 lb ft) Automatic Level Control Air Supply Reservoir Coupling Replacement
4 Automatic Level Control Air Compressor Tube Fitting - - 5.5 N.m (49 lb in) Automatic Level Control Air Supply Reservoir Replacement

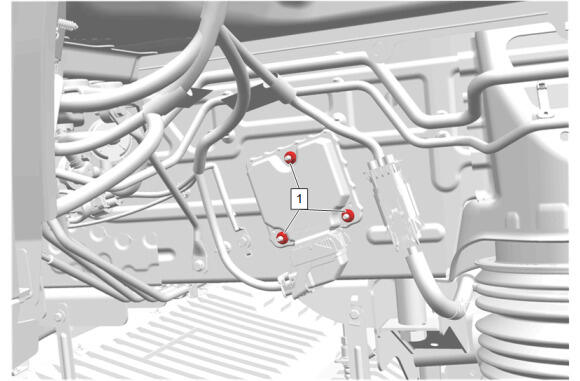

GM6466556Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Electronic Suspension Control Module Bracket Nut

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Electronic Suspension Control Module Bracket Nut [3x] - - 9 N.m (80 lb in) Suspension Control Module Replacement
GM5910790Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Suspension 4 Corner Leveling System Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Suspension 4 Corner Leveling System Position Sensor - - 9 N.m (80 lb in) Front Suspension 4 Corner Leveling System Position Sensor Replacement

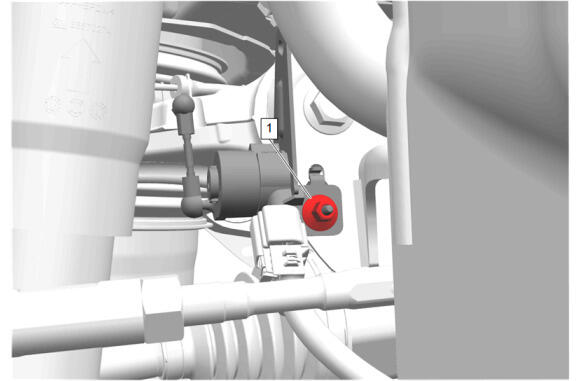

GM6464579Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Suspension 2 or 4 Corner Air Leveling Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension 2 or 4 Corner Air Leveling Position Sensor - - 9 N.m (80 lb in) Rear Suspension 2 or 4 Corner Air Leveling Position Sensor Replacement
