Removal Procedure

Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.
Courtesy of GENERAL MOTORS COMPANY

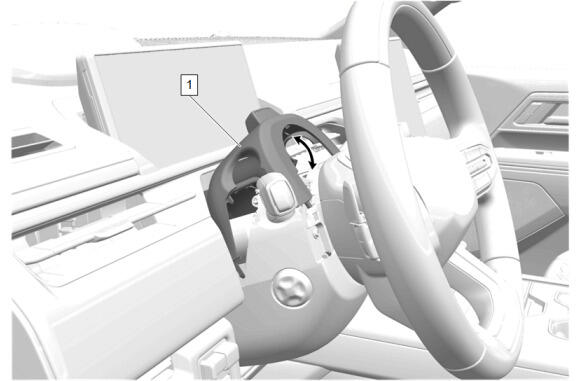

Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover and reposition.
Courtesy of GENERAL MOTORS COMPANY

Turn the steering wheel approximately 90 degrees to the left of the centered position.

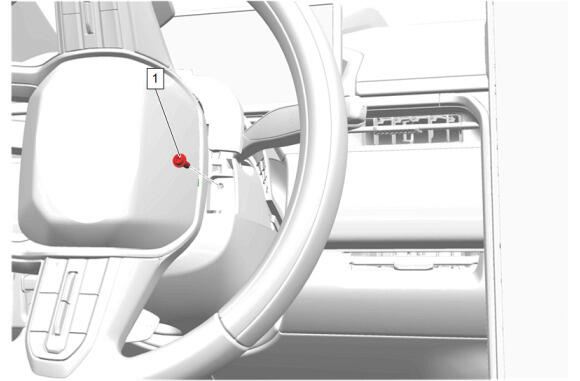

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Turn the steering wheel approximately 90 degrees to the right of the centered position.
Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
Turn the steering wheel to the centered position.
Courtesy of GENERAL MOTORS COMPANY

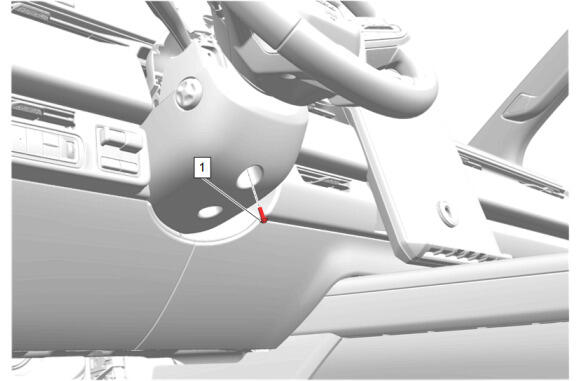

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

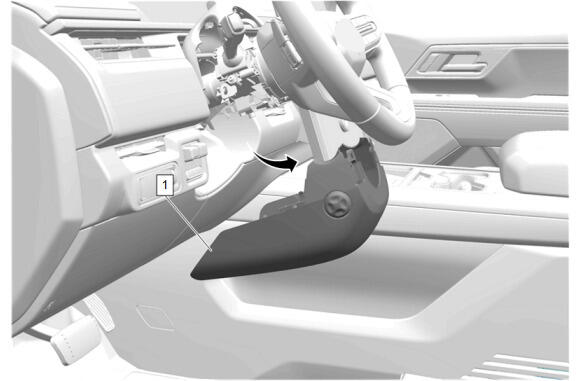

Instrument Panel Steering Column Lower Trim Cover (1) - Remove
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

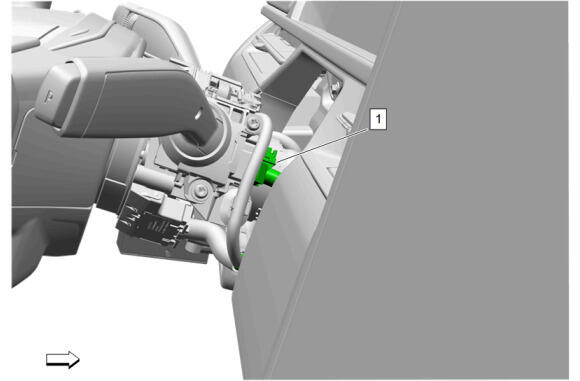

Disconnect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

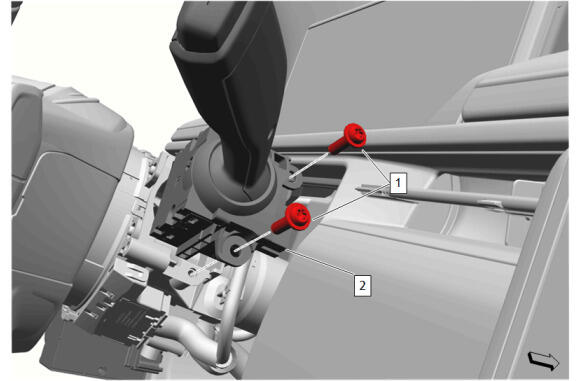

Automatic Transmission Electronic Control Bolt (1) - Remove [2x]
Automatic Transmission Electronic Control (2) - Remove
