Repair Procedures: Installation

1. Install in the reverse order of removal.
2. Tighten the HECU mounting bolts and nuts to the specified torque.
3. After installation, bleed the brake system.

   (Refer to Brake System - "BRAKE SYSTEM BLEEDING ")

4. Connect the GDS to the data link connector located underneath the dash panel.

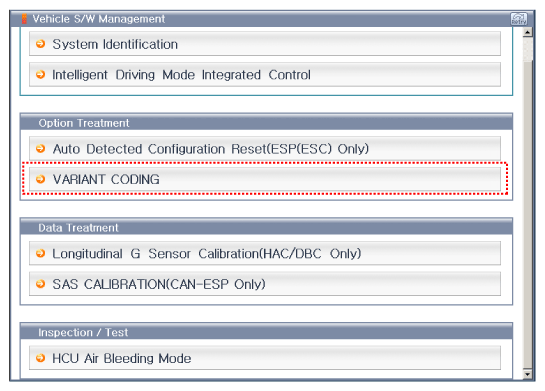

5. Make a selection and operate the process according to the instructions on the GDS screen.

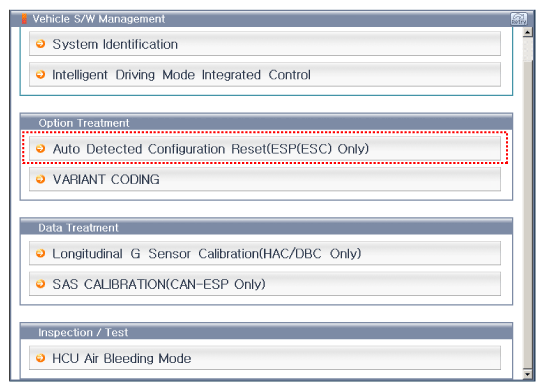

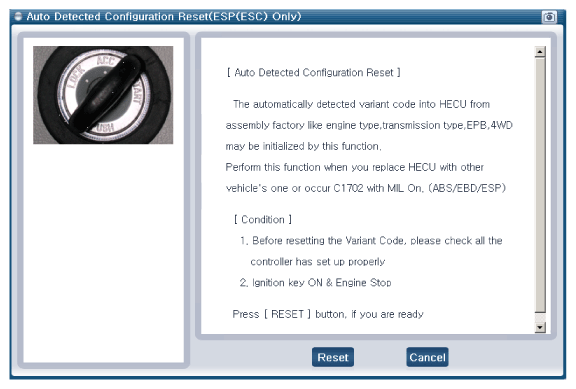

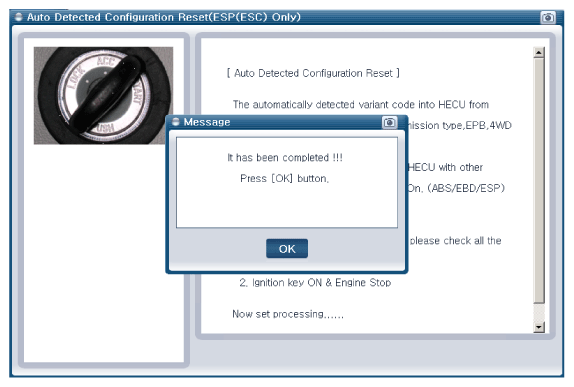

[Auto Detected Configuration Reset]

Courtesy of

Courtesy of

Courtesy of

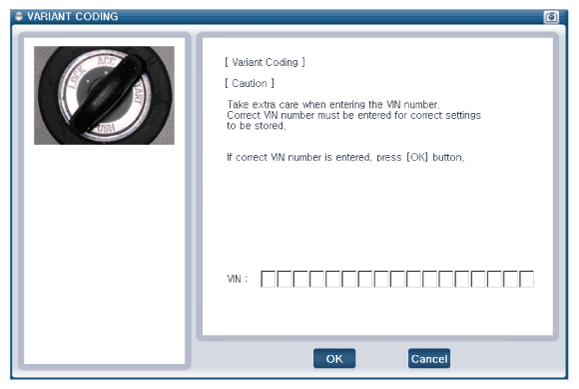

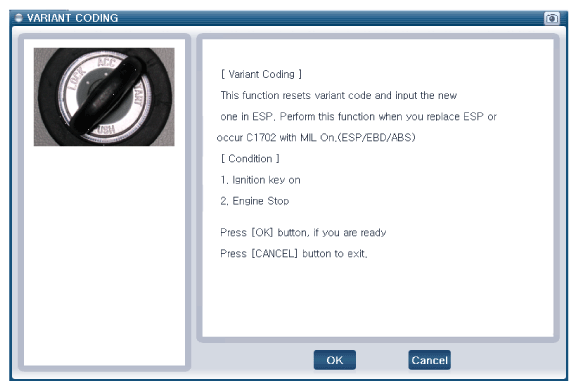

[VARIANT CODING]

Courtesy of

Courtesy of

Courtesy of

Courtesy of

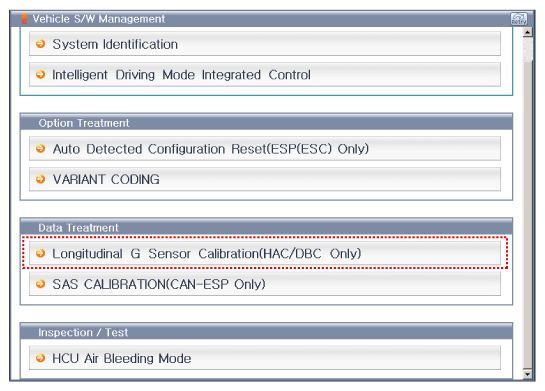

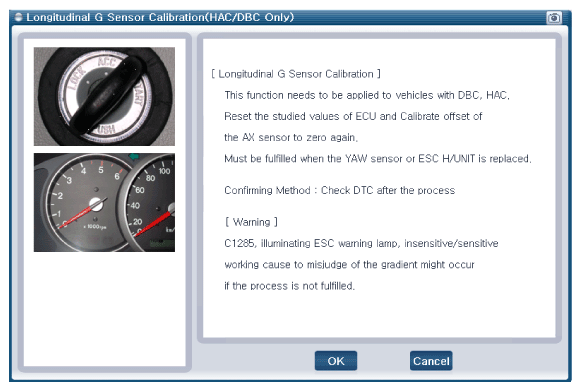

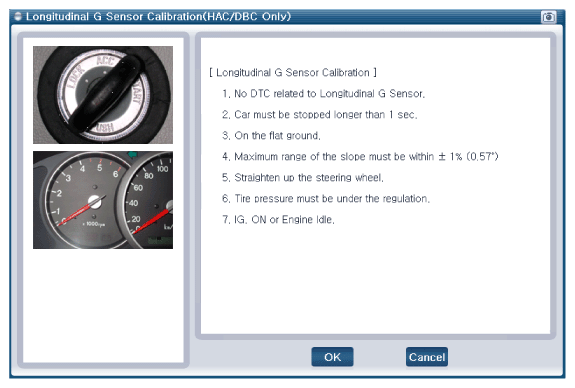

[Longitudinal G Sensor Calibration]

Courtesy of

Courtesy of

Courtesy of

Courtesy of

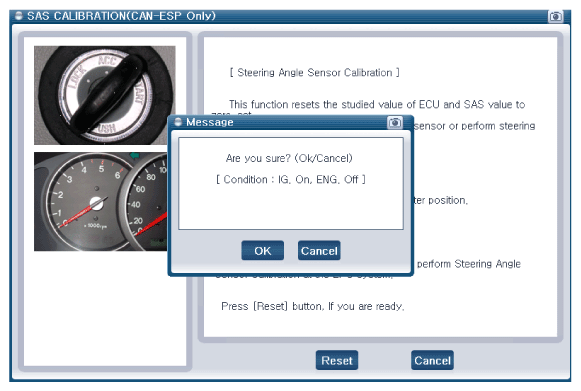

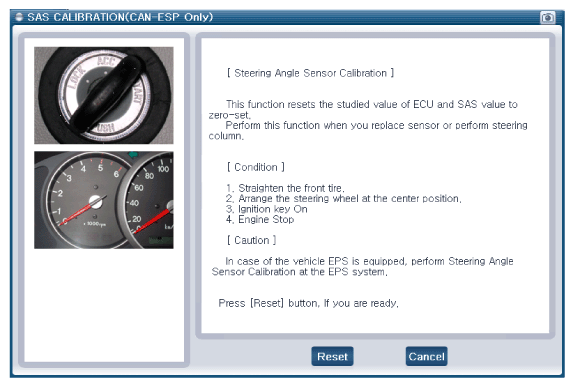

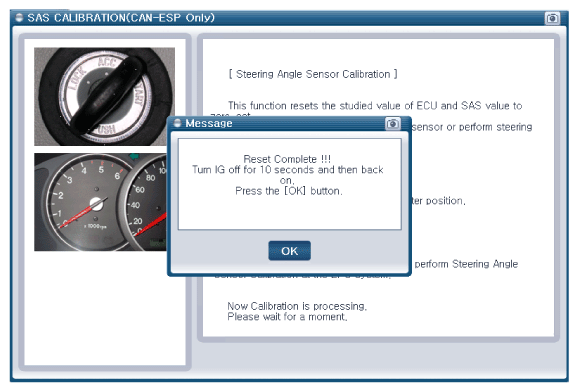

[SAS CALIBRATION]

Courtesy of

Courtesy of

Courtesy of

Courtesy of
