Side Impact Sensor (SIS)

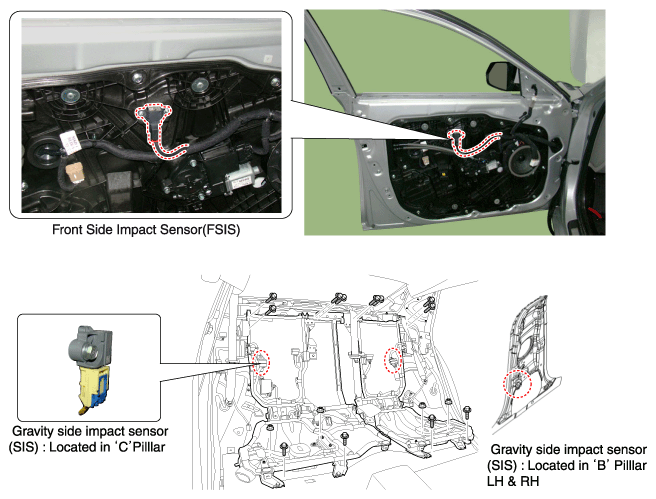

Fig 1: Side Impact Sensor
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
