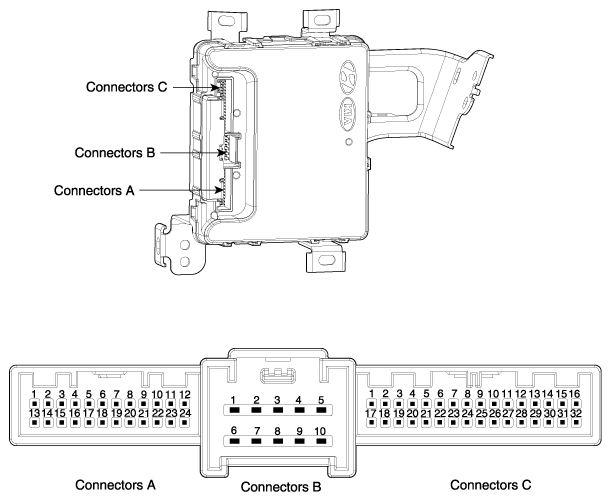

| 1 |
Immobilizer antenna GND |
B + |
IGN2 input |
| 2 |
Bumper antenna GND |
- |
- |
| 3 |
Trunk antenna GND |
ESCL GRN |
ESCL enable output |
| 4 |
Indoor antenna 2 GND |
- |
Assist door button input |
| 5 |
Driver's door antenna GND |
GND |
SSB_switch1 input |
| 6 |
Indoor antenna 1 GND |
B+POWER |
EMS CAN |
| 7 |
Door antenna assist GND |
- |
RPM signal input |
| 8 |
SSB_LED OFF output |
ESCL BAT |
Wheel speed input |
| 9 |
SSB_LED ACC output |
- |
Start Feedback signal input |
| 10 |
SSB_LED IGN output |
GND |
Brake switch signal input (Normal Open) |
| 11 |
SSB LED POWER |
|
P signal input (AT specification) |
| 12 |
- |
|
ESCL unlock signal input |
| 13 |
Immobilizer antenna power |
|
- |
| 14 |
Bumper antenna power |
|
- |
| 15 |
Trunk antenna power |
|
- |
| 16 |
Indoor antenna 2 power |
|
SSB switch 2 input |
| 17 |
Driver's door antenna power |
|
- |
| 18 |
Indoor antenna 1 power |
|
- |
| 19 |
Assist door antenna power |
|
B CAN LOW |
| 20 |
IGN2 relay output |
|
B CAN HIGH |
| 21 |
IGN2 relay output |
|
Driver's door switch input |
| 22 |
ACC relay output |
|
- |
| 23 |
SSB LED GND |
|
ESCL CAN |
| 24 |
Starter relay output |
|
- |
| 25 |
|
|
- |
| 26 |
|
|
ACC |
| 27 |
|
|
IGN2 |
