Calibration Procedure

Perform wheel alignment and place the steering wheel in a line within ±5° error.

Courtesy of

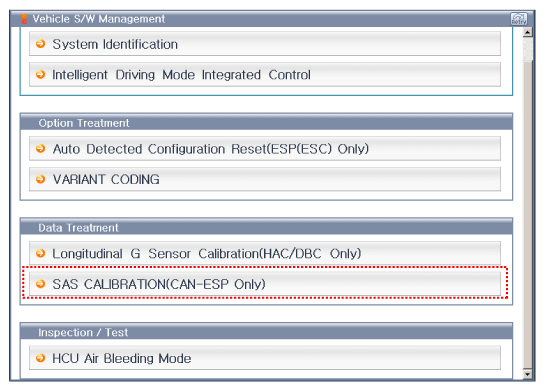

1. Connect the GDS. (CAN line or OBD connector)
2. Turn ignition switch on.

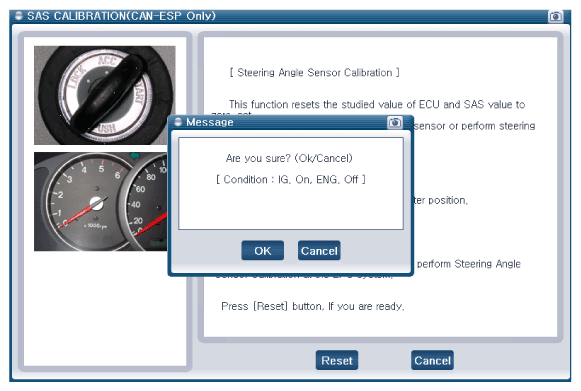

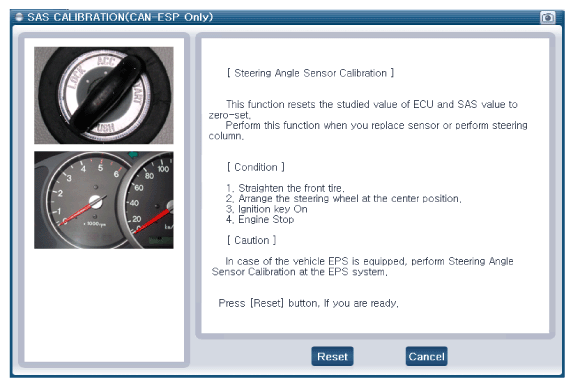

3. Press calibration button of the Steering Wheel Angle Sensor.

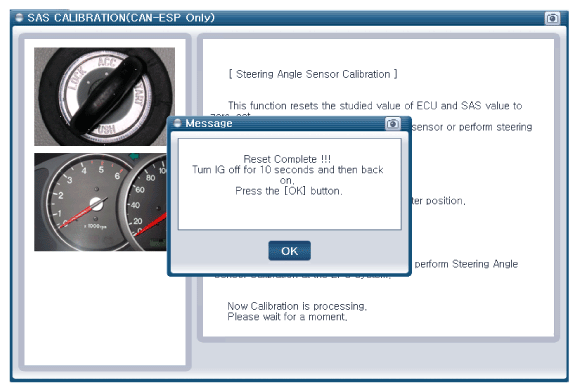

4. HECU calibration procedure is performed.

(Calibration records, DTC codes erasure)

Courtesy of

Courtesy of

Courtesy of

Courtesy of
